BioNIC FP6 Experience the Ultimate in Security

This industrial multi-modal terminal is built with face & optical finger sensors to serve industrial use cases powered by the most advanced facial and finger matching engine. The terminal can serve multiple industrial use cases such as visitors, attendance, access control and canteen management.

Get In Touch

BioNIC FP6 Cutting-Edge Face & Fingerprint Detection for Attendance Management

The BioNIC FP6 face and fingerprint detection attendance system is engineered to enhance the way organizations monitor and manage employee attendance. Leveraging sophisticated face detection technology, the BioNIC FP6 provides a swift and secure method for employee verification, making it an essential tool for modern workplace management.

The BioNIC FP6 is more than just an attendance system; it's a comprehensive solution that streamlines attendance processes, boosts productivity, and enhances security within any organization. Ideal for corporate offices, industrial environments, and educational institutions, the BioNIC FP6 is the perfect upgrade for any organization aiming to modernize its attendance tracking mechanisms.

Key Features of the BioNIC FP6:

Accurate Face & Fingerprint
Detection Technology:

The BioNIC FP6 employs advanced facial detection algorithms to identify employees accurately and efficiently, ensuring quick check-ins and minimal disruption to the workday.

High-Security
Standards:

This system enhances security by preventing fraudulent attendance practices and ensuring that only registered personnel can access the premises.

Contactless
Operation:

Promoting a hygienic workplace, the BioNIC F6's contactless feature is particularly valuable in maintaining health standards by minimizing physical contact.

Ease of
Use:

With a user-friendly interface, the BioNIC FP6 is designed to be accessible to all employees, requiring little to no training for daily use.

Seamless
Integration:

The system integrates effortlessly with existing HR software, enabling automatic synchronization of attendance data, which simplifies payroll and human resources management.

Features

Some of the significant features of our advance biometric fingerprint scanner device are listed underneath:-

IP54

Fingeprint Scanner

Liveness Check Passed

Dual RGB and Near Infrared Camera 2 Million WDR Pixel Resolution

Dual Core Arm Cortex A7, Max 1.5GHz

1GB DDR4 + 8GB EMMC

Supports ISO14443 Mifare Classic

5 Inch, Vertical Screen H1280 * W720 Resolution Multi Point Capacitive Touch Screen

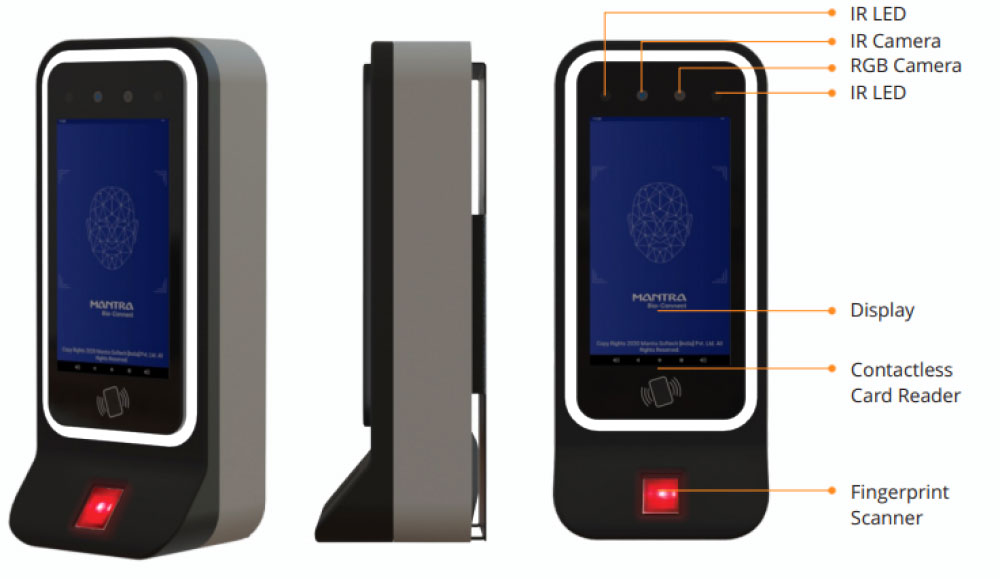

At A Glance

Experience the Ultimate in Security Through Facial & Fingerprint Technology.

Specification

Feature exquisite specifications that are designed to address the modern-day requirements of individual identification and authentication.

Hardware & System

CPU :

Dual Core Arm Cortex A7, Max 1.5GHz

NPU :

1.2T FLOPS

RAM Memory :

1GB DDR4

Storage Memory :

8GB EMMC

Display & Touch

Display :

5 Inch, Vertical Screen 720*1280 Resolution Flash LED with Variable Intensity

Touch :

Multi Point Capacitive Touch Screen

Binocular Wide Dynamic Camera (RGB + IR)

Camera Type :

Dual RGB and Near Infrared Camera

Pixel Resolution :

2 Million WDR

Recognition Time :

< 200 ms

Pattern Recognition :

Local Identification, Support Offline, Support Mask Identification

Recognition Distance :

Upto 120 cm

Accuracy User :

> 99.8%

Interface

Network Module :

1x RJ45

Wi-Fi :

Supported

Audio :

Support 2W/4Ω

RS485 :

1 x RS485

Wiegand Interface :

1 x Output

Relay Interface :

1 x Relay

Power Jack :

12V DC, 2A

GPIO's :

2 x GPIO

RTC :

Supported

Smart Card Reader

Contactless Card (Optional) :

Supports ISO14443 Mifare Classic

Fingerprint Sensor

Fingerprint Type :

Scratch Free Optical Sensor

Fingerprint Image :

316 x 354 Pixels ( 16 mm x 18 mm )

Image Specs :

500DPI, 8 Bit Grayscale

Certifications :

CE, FCC, RoHS, STQC, PIV, IEC60950, IS13252 Part

Functions / Features

Face Detection :

Support multiple people detection and tracking

Face & Finger Database Capacity :

2K/4K & 6K/12K

1:N Face Recognition :

Supported (2K, 6K)

1:1 Face Recognition :

Supported

Stranger Detection :

Supported

Face Recognition Accuracy :

Normal Light Condition > 99.8%

External Light Condition > 95%

Liveness Detection :

Supported

Software

Operating System :

Linux OS, Kernel Ver. 4.19.111

Log Capacity :

1M

Enrollment :

Supported

General Parameter

Protection Grade :

IP54

Operating Temperature :

- 10℃ ~ 60℃

Operating Humidity :

90% RH (Non-Condensing)

Dimensions (L X W X H) :

225mm*97.3mm*73.5mm

Weight :

~ 500 grams

Mounting Type :

Wall Mount & Turnstile Mount

Certifications

Certifications :

BIS, RoHS, IP54
