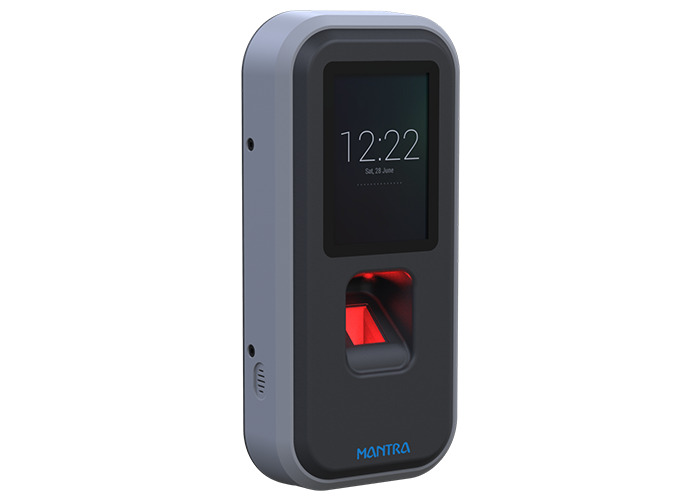

mBrix Biometric Access Control

Mantra mBrix access control device offers a comprehensive physical access control solution supporting all configured features to restrict the access of unauthorized persons. The device is highly robust and developed with the advanced technology.

Get In Touch

Our mBrix Access Control Device

Access control device is used for the authentication and authorization of an individual to render access into the premises or facilities to an authorized person only by restricting the unauthorized personalities to enter the premises. The device is affordable and offers a seamless solution. An access control system has various applications in different sectors such as Education, Retail, Health care, Hospitality, Banks, Offices, Factories, Government premises and many more.

Application

Education

Retail

Government

Healthcare

Hospitality

Bank

Office

Factory

Our Specifications

Advanced biometric technology, robust design, and adaptable to various environments.

Display :

3.5 Inch Touch Screen TFT Color LCD with 320x240 Virtual Keypad on LCD

Micro Processor :

ARM Cortex A8 @ 800 MHZ

Memory :

512 MB RAM , 256MB Flash

Operating system :

Linux OS (RTOS)

Keyboard :

Physical integrated QWERTY Keypad, Alpha Numeric (A-Z,0-9): Function keys (F1-F10)

Interface/Connectors :

a) 1x RS-232 (RJ 45 connector for console/Serial port) b) USB Device – 1 c) USB Host-1

Speaker :

1W Audio Speaker supporting MP3 and WAV file

Fingerprint Scanner :

STQC and Level 0 Certified

Contactless card reader :

ISO1443, NFC inbuilt proximity card/Mifare, Supports read and write

Communication Module :

A) LAN 10/100/1000 BASE-T (Ethernet) B) DUAL SIM CARD with 3G & 4G data support C) Wi-Fi IEEE 802.11b/g/n)

GPS :

Optional

Power Adaptor :

AC input 10-240V, 50/60Hz, DC output 9V.2.2A

Battery :

2000mAH

Enclosure :

Rugged casing made up of ABS+PC Complying to IP51 Standard and wall mount facility to be provided

Operating Temperature :

0°C to 55°C

Safety :

CE Certified

Drop Test :

3-4 Feet Drop test

Certifications :

1) BIS 2) RoHS 3) IP 51 4) STQC certified 5) CE

SD Card Provision :

Provision Micro SD Card Reader (upto 32 GB)

Application compatibility :

NIC AEBAS application compatibility, Third party integration if required.

Accessories :

Power Adapter, USB cable
