Bionic7 Biometric Access Control

Mantra introduces BioNIC 7, an all-in-one device for improving the security by Fingerprint Biometric Technology. BioNIC 7 has Biometrics Fingerprint scanner and Card reader for Access Control and Time Attendance system .

Get In Touch

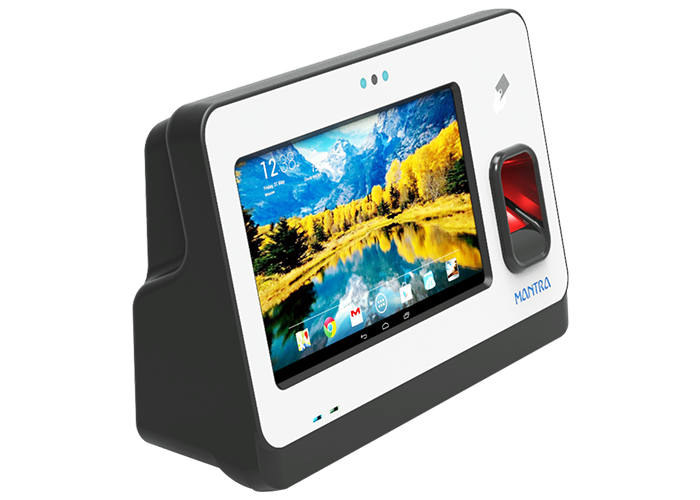

Our Bionic7 Access Control Device

BioNIC 7 is built with industry's most advanced and robust sensors to improve the longevity and accuracy. An inbuilt Wifi system makes the device more suitable for any user. It has a Fingerprint scanner and card reader which supports HD/Mifare card and can work in a Standalone mode. Additionally, it easily integrates with external reader, besides this, it includes a relay to control the lock and two exit indoor alarm inputs.

Benefits

Our Specifications

Boasts high-speed recognition, durable construction, and user-friendly interface.

Display :

7 Inch Touch Screen TFT Color LCD with 320x240 Virtual Keypad on LCD

Micro Processor :

ARM Cortex A8 @ 800 MHZ

Memory :

512 MB RAM , 256MB Flash

Operating system :

Android

Keyboard :

Virtual Keypad

Interface/Connectors :

a) 1x RS-232 (RJ 45 connector for console/Serial port) b) USB Device – 1 c) USB Host-1

Speaker :

1W Audio Speaker supporting MP3 and WAV file

Fingerprint Scanner :

STQC and Level 0 Certified

Fingerpint storage :

100000

Contactless card reader :

ISO1443, NFC inbuilt proximity card/Mifare, Supports read and write

Communication Module :

A) LAN 10/100/1000 BASE-T (Ethernet) B) DUAL SIM CARD with 3G & 4G data support C) Wi-Fi IEEE 802.11b/g/n)

GPS :

Optional

Power Adaptor :

AC input 10-240V, 50/60Hz, DC output 9V.2.2A

Battery :

Battery Backup 5 Hours

Enclosure :

Rugged casing made up of ABS+PC Complying to IP51 Standard and wall mount facility to be provided

Operating Temperature :

0°C to 55°C

Safety :

CE Certified

Drop Test :

3-4 Feet Drop test

Certifications :

1) BIS 2) RoHS 3) IP 51 4) STQC certified 5) CE

SD Card Provision :

Provision Micro SD Card Reader (upto 32 GB)

Application compatibility :

NIC AEBAS application compatibility, Third party integration if required.

Accessories :

Power Adapter, USB cable

Our Downloads

Comprehensive guides and brochures available for in-depth understanding and efficient operation.

Product Brochure
User Guide
