Products MS30 Sound Box

BIS | CE | WPC | RoHS | Dynamic QR

MS30 UPI Payment Sound Box

Intelligent UPI payment sound box with dynamic QR code, 2.4-inch color customer screen, 85dB voice alert, 4G LTE + Wi-Fi, and OTA updates - delivering customizable real-time audio confirmations for every merchant.

Street Markets Retail Shops CafÃ©s Boutiques MSME Merchants

Get a Quote Download PDF

Dynamic QR Code

2.4" Color Screen

Key Highlights

Intelligent Cloud Reader with Dynamic QR Code

MS30 goes beyond standard soundboxes with a dynamic QR code display, 2.4-inch color customer screen, and customizable real-time audio alerts - giving merchants complete payment visibility.

Dynamic QR Display

Intelligent Cloud Reader

Generates a unique, transaction-specific QR code for every payment. This eliminates static QR fraud risks and ensures every payment is correctly attributed to the right merchant and amount automatically.

2.4" Color Screen

TFT | 320*240px | 6-Digit LED

High-resolution TFT color screen gives customers visual confirmation of their transaction. Complemented by a 6-digit LED display for the merchant and status indicators for battery and network connectivity.

85dB Voice Alert

4 Ohm | 3W | Adjustable

Announces exact transaction amounts in real time. Audio alerts are fully customizable, allowing merchants to set personalized confirmation messages. Adjustable volume suits everything from quiet boutiques to loud market stalls.

4G LTE + Wi-Fi

LTE-FDD/TDD | optional Wi-Fi 2.4GHz

Primary 4G LTE and 2G EGSM fallback with optional Wi-Fi 2.4GHz connectivity - ensuring reliable payment notifications even in areas with inconsistent cellular coverage.

OTA Updates

DFOTA | NTP Time Sync | Remote

Over-the-air updates for firmware (DFOTA) and audio notification files. Network operators can push new announcement tones, languages, or security patches without physical device access. NTP ensures accurate timestamps.

Enterprise Compliance

BIS | CE | WPC | RoHS

Certified to highest hardware standards. ESD protection: 8kV contact and 15kV air discharge. Operates reliably from 0^oC to 50^oC in high-humidity environments.

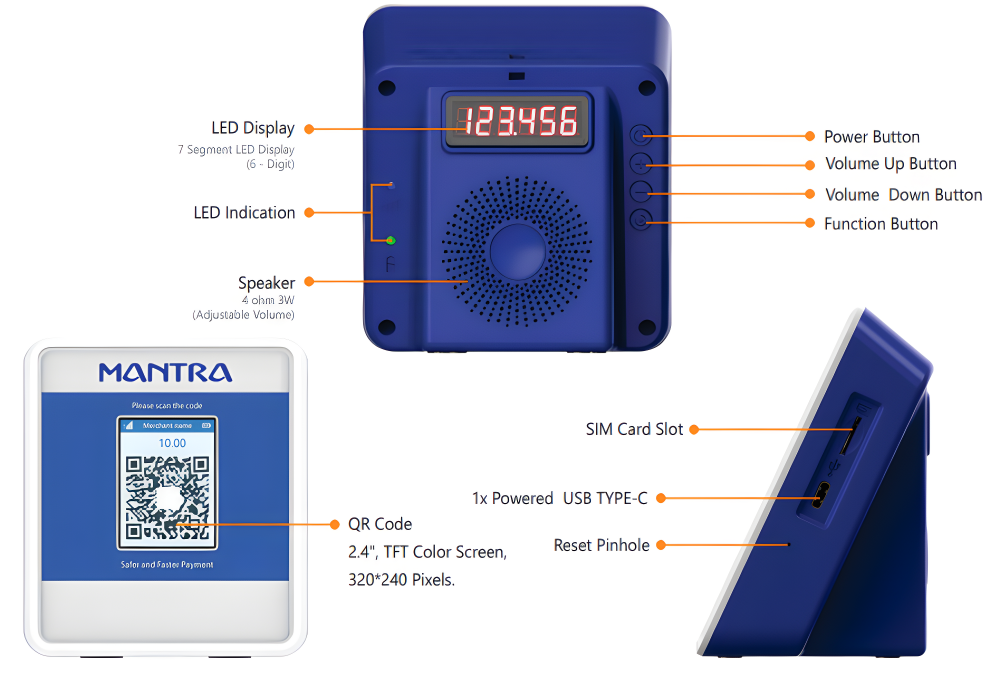

Advanced Technology

Built for Intelligent UPI Payment Verification

MS30

Intelligent UPI Payment Sound Box

Dynamic Display

QR Code

Transaction-specific QR eliminates static QR fraud

Customer UI

2.4"

TFT Color 320*240px Visual Confirmation

Audio Output

85dB

4 Ohm | 3W Customizable Alerts

Connectivity

4G + Wi-Fi

LTE-FDD/TDD | Optional 2.4GHz Wi-Fi

Management

OTA

Firmware & Audio Notification Updates

Power System

2000mAh

USB-C Charging | Full Business Day Operation

Discover Our Solutions

Integrated Retail & Financial Solutions

MS30 enables secure, transparent UPI payments for every Indian merchant.

Retail & F&B

Enterprise Security Solutions

Scale your retail network with secure dynamic QR generation and integrated transaction monitoring.

Infrastructure

Smart City Solutions

Deploy intelligent payment checkpoints at public markets, transport hubs, and parking facilities.

Identity & Fintech

Citizen Identification

Facilitate transparent service payments at urban citizen centers with dual-verify audio and visual screen.

Specifications

Technical Details

Full specifications for system integrators, retailers, and financial network operators.

General Parameters

CPU

ARM Dual-Core Cortex-A5, 500MHz

RAM / Flash

16MB / 8MB

SIM Slot

1* Micro SIM

LED Display

7-Segment LED, 6-Digit

Customer Screen

2.4" TFT Color, 320*240px

Indicators

1* Battery LED, 1* Network LED

Speaker

4 Ohm, 3W (Adjustable)

Firmware

OTA Upgradeable (DFOTA)

Battery

2000mAh Li-Ion Rechargeable

Power Supply

DC 5V / 1A (USB-C)

Dimensions

112 * 100 * 73 mm

Weight

~0.28 kg

Buttons

1* Power, 1* Reset, 2* Volume, 1* Function

Communication

2G Network

EGSM900 / DCS1800

4G LTE-FDD

B1/B3/B5/B8

4G LTE-TDD

B34/B38/B39/B40/B41

Wi-Fi

2.4GHz (Optional)

Standards & Compliance

Electrical Safety

BIS Certified

EMI/EMC

CE Certified

ESD Contact

8kV Discharge

ESD Air

15kV Discharge

Health & Safety

RoHS Compliant

Wireless

WPC Approved

Environmental

Operating Temp.

0^oC to 50^oC

Storage Temp.

-10^oC to 70^oC

Humidity

5% - 95% RH, Non-Condensing

Resources

Everything You Need to Deploy

Product Brochure

Full brochure with technical specs, certifications, and deployment overview for the MS30 UPI Sound Box.

Download PDF

Technical Support

Connect with our payment solution specialists for integration and merchant deployment support.

Get Support

Expert Payment Support

Our specialists will help you deploy the MS30 soundbox at scale for your merchant network.
