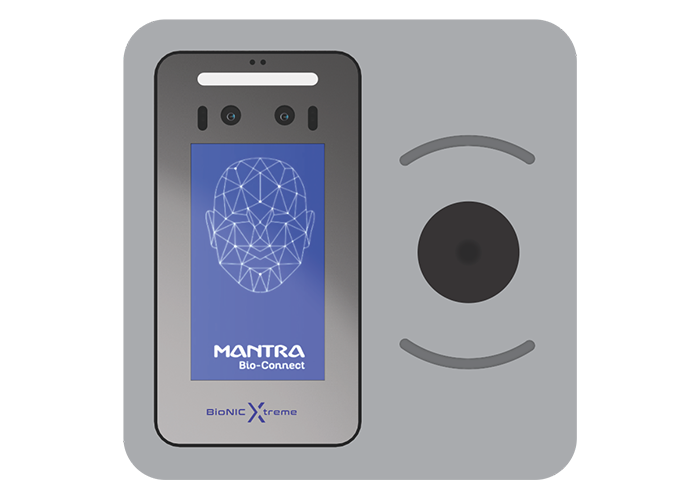

BioNIC X3 Enterprise Grade Facial & Palm Recognition System

The future of security is with the BioNIC X3, a sophisticated palm-reading scanner designed to blend seamlessly into an existing security system. This innovative device not only strengthens security but does so with a precision, user-friendly approach that respects the natural flow of human interaction.

Get In Touch

Our
BioNIC X3 Advanced
Palm-Reading Technology

The BioNIC X3 transforms the entry process into a simple, secure gesture, allowing individuals to gain access with just the palm of their hand. It's more than a security device; it's a way to enhance the daily experience of everyone who walks through your premises, making your entry security system secure and safe.

Ideal for environments where both security and a friendly atmosphere are priorities, the BioNIC X3 is suitable for corporate settings, educational campuses, healthcare facilities, and more. It stands out by providing a secure yet straightforward way to manage access, ensuring everyone feels welcome while keeping your space secure.

Key Features:

BioNIC X3 Palm-Reading Scanner

Effortless Identity Verification:

The BioNIC X3 employs cutting-edge palm recognition technology that captures the palm vein details of each person, offering a fast and foolproof method to verify identities accurately.

Subtle and Secure:

By integrating the modern technology of palm scanning, the BioNIC X3 provides robust security without disturbing your systems, keeping your premises safe in the most welcoming way possible.

Contactless Convenience:

In today's world, minimizing physical contact is paramount. The BioNIC X3's contactless feature ensures a hygienic environment, crucial for public health and peace of mind.

Ease of Access for All:

Designed for accessibility, the BioNIC X3 is intuitive and easy to interact with, ensuring that everyone, regardless of technical ability, can use it effortlessly.

Simple Integration:

The BioNIC X3 is crafted to work harmoniously with your existing security setup, enhancing its capabilities without requiring extensive modifications.

Features

Some of the significant features of our advance biometric fingerprint scanner device are listed underneath:-

PALM

Certifications

Liveness Check Passed

Dual RGB and Near Infrared Camera 2 Million WDR Pixel Resolution

2.2GHz Quad core ARM Cortex-A73

2GB RAM + 16GB EMMC

ISO14443 Type A/B Cards, Mifare Classic / Desfire

5 Inch, Vertical Screen H1080 * W1920 Resolution Multi point capacitive touch screen with tuffen glass

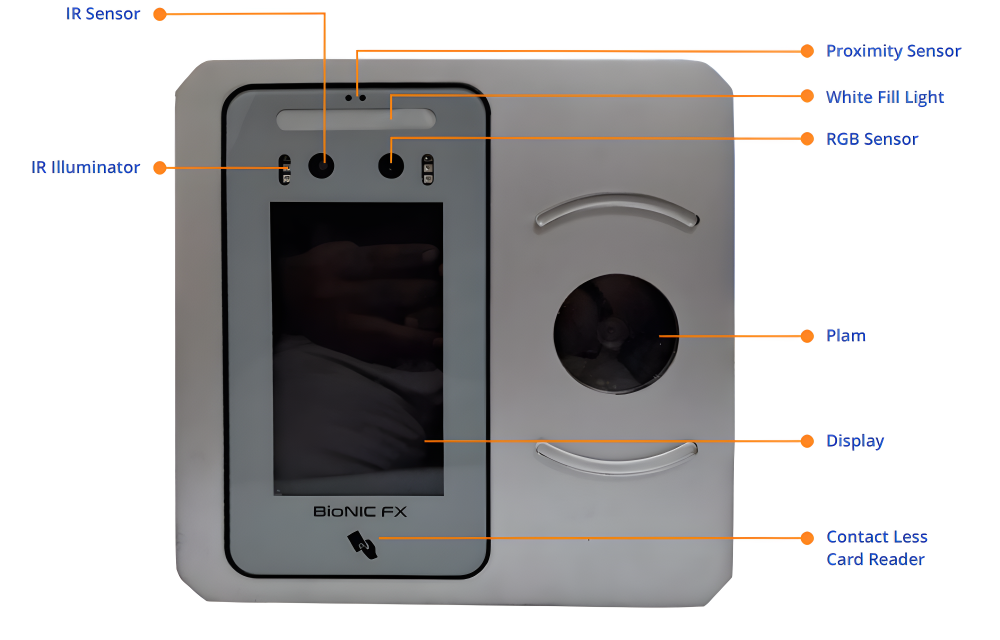

At A Glance

Enterprise Grade Facial & Palm Recognition System.

Specification

Feature exquisite specifications that are designed to address the modern-day requirements of individual identification and authentication.

Hardware & System

CPU :

2.2GHz Quad core ARM Cortex-A73 and 1.8GHz dual core Cortex-A53

GPU :

ARM G52 MP4 GPU

Memory RAM :

2GB

Memory Storage :

16GB

Display & Touch

Display :

5 Inch, 1080X1920 Resolution, Full view IPS TFT Display

Touch :

Multi point capacitive touch screen with tuffen glass

Binocular Wide Dynamic Camera (RGB + IR)

Camera Type :

Dual RGB and Near Infrared Camera

Pixel Resolution :

2M (1920 x1080)

Frame Rate :

30 FPS

Minimum Illumination :

= 0.1 LUX

Dynamic Range :

= 45dB Linear & = 100 dB HDR supported for various light environment

Focus Distance :

30 -150 cm

White Balance :

Auto

Photo Flood Light :

Visible & IR dual Flood Light

Support :

Live Face Detection

Interface

Network Module :

1x RJ45, 10M/100M

Wi-Fi / BT :

Supported

Audio :

Supported

HDMI :

1 X HDMI

RS232 :

1 x RS232

RS485 :

1 x RS485

Wiegand Interface :

1 x Output ; 1 x Input

Relay Interface :

2 x Relay (NC, NO, COM)

Power Jack :

DC 5V/3A

GPIO's :

5 X GPIO

RTC :

Supported

Palm

Recognition Angle :

Yaw’s 20, Pitches 20*, Rolls 90*, Bend’s

Recognition Method :

1:1 and 1:N

Accuracy :

TAR = 98.2% when FAR = 0.05%

Recognition Time :

< 300 ms (quad – core cortex – a9 up to 1.6ghz)

Plam Database Capacity :

15000

Smart Card Reader

Contactless Card (Optional) :

ISO14443 Type A/B Cards, Mifare Classic / Desfire

Card Database Capacity :

20000

Functions / Features

Face Detection :

Support multiple people detection and tracking

Face Database Capacity :

20000

1:N Face Recognition :

Supported (5K, 10K, 20K, 50K)

1:1 Face-matching :

Supported

Stranger Detection :

Supported

Face Recognition Accuracy :

Normal Light Condition > 99.9%

External Light Condition > 95%

Liveness Detection :

Supported

Recognition Speed :

300 ms

Software

Operating System :

Customized Android

SDK :

Appropriate SDK for all accessories to be provided for Android

General Parameter

Casing :

Light weighted oxidised aluminium alloy back cover for heat dissipation with ABS front cover

Protection Grade :

Dust Proof

Operating Temperature :

-10℃ ~ 60℃

Storage Temperature :

-20℃ ~ 60℃

Operating Humidity :

10%-90% RH (Non-Condensing)

Dimensions :

185.0 x 97.0 x 30.5 mm

Weight :

Approx 800 gm

Mounting Type :

Wall mount, Turns Tile Mount

Certifications

Certifications :

CE, RoHS, BIS

Our Downloads

Comprehensive user guides and informative brochures available, providing a detailed overview and usage instructions.

Product Brochure
