MAPRO OX Enterprise OEM Module

MAPRO OX is a faster, accurate and reliable fingerprint OEM module used for the authentication and verification of an individual.

FBI PIV Compliant STQC Certified IP67 Platen 8H Hardness Ultra Compact Serial TTL

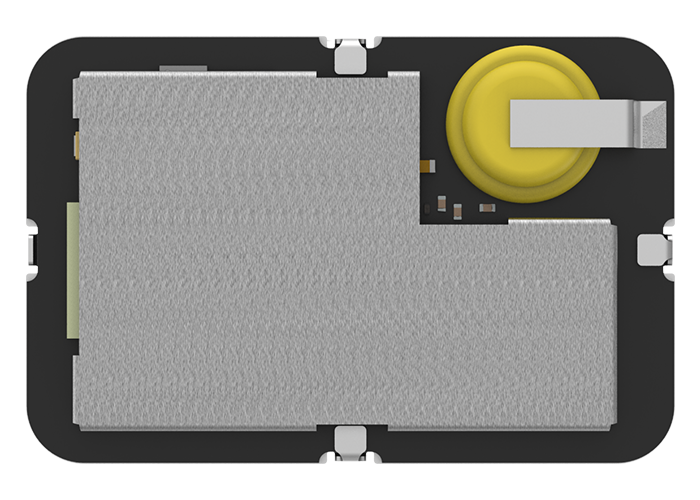

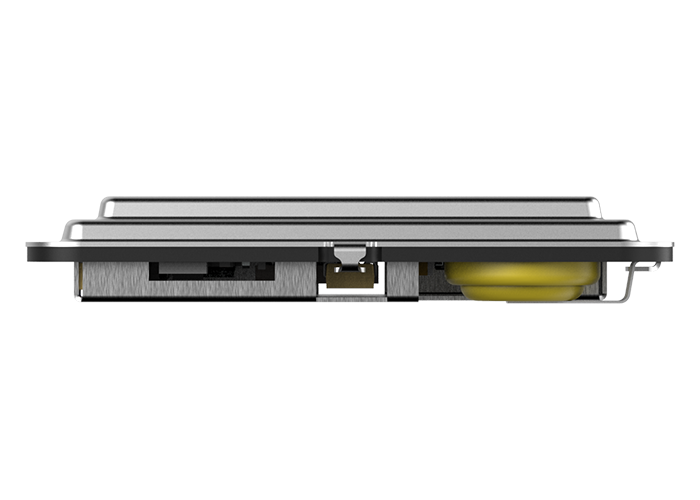

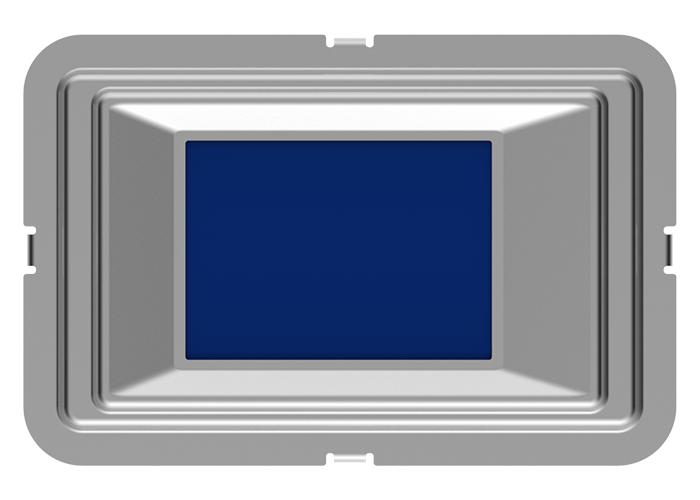

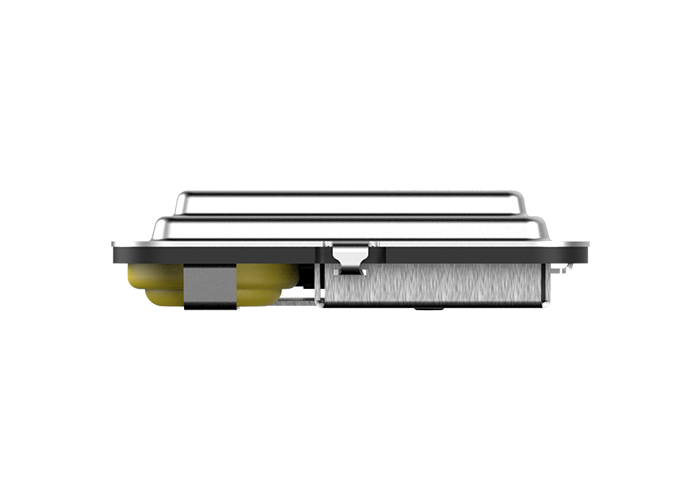

Mantra MAPRO OX Module
500 DPI Resolution
IP67 Platen Area
WHQL Certified

Our MAPRO OX Module Excellence

MAPRO OX is a fingerprint OEM module, which uses advance optical technology for accurate identification and authentication of an individual. The module is scratch resistant which provides a longer lifespan. MAPRO OX offers higher accuracy and faster operation.

Durability
8H Glass Hardness
Scratch-resistant sensor surface with 8H hardness ensures superior longevity and consistent image quality.
Environment
IP67 Rated Platen
The platen area is IP67 rated, offering exceptional protection against dust and water ingress for outdoor applications.
Performance
< 2 sec Acquisition
High-speed data transmission enables rapid fingerprint acquisition from placement to template in under 2 seconds.

Enterprise OEM Core

MAPRO OX deliver unmatched precision and reliability in an ultra-compact form factor.

Resolution
500 DPI
Precision 500 DPI +/- 2% spatial resolution for high-accuracy biometric validation.
Size
Ultra-Thin
Incredibly compact design with a height of just 6.5 mm for slim device integration.
Protection
IP67
Sealed platen area ensures operational reliability in demanding environments.
Sensing Area
12.8x18 mm
Optimized sensing area for effective capture with a 256 x 360 pixel image size.
Interface
USB / Serial
Versatile connectivity with USB 2.0 and Serial TTL support for diverse hardware platforms.

Technical Details

Full technical specifications for system integrators and procurement teams.

Sensor Characteristics
Fingerprint Sensor
Optical Sensor
Spatial Resolution
500 DPI +/- 2 %
Sensing Area
12.8 mm x 18 mm
Image Size
256 x 360 Pixels
Image Grayscale
256 (8 - Bit Gray Level)
Hardness
8H
Acquisition Time
< 2 sec (Placement to Template)
Dimensions
42 x 27.5 x 6.5 mm
Approx Weight
0.008 Kg
Electrical Characteristics
Operating Voltage
5V +/- 5% (USB Powered Device)
Operating Current (max)
110 mA
Stand by Current (max)
66 mA
Interface
USB 2.0 / Serial TTL
Environmental Characteristics
Operating Temp
0 to 50 oC
Storage Temp
0 to 50 oC
Humidity
< 90% RH, Non-condensing
IP Rating
IP67 (Platen Area)
Certifications & Standards
Biometric Format
ISO 19794-2 (Minutiae), ISO 19794-4 (Image)
EMI / EMC
CE & FCC Class A
Safety
IEC60950, IS 13252 (Part 1)
Certifications
FBI PIV Compliance, STQC Certified, RoHS
OS Support
Windows x86 & x64, Linux, Android
Device Driver
WHQL Certified
