Menroll100 Portable Enrollment Fingerprint Device

Menroll100 is a mobile multi fingerprint scanner with an intuitive ergonomic design. The fingerprint reader is suitable for use in various sectors and applications as it is compact and powered by sophisticated biometric technology from Mantra Softech.

Get In Touch

Our Menroll100

The Menroll100 is an FAP 50 certified fingerprint scanner built for the toughest and most challenging identity management projects. The portable unit's ARM Cortex A53 @1.3GHz Quad Core Processor, 2GB RAM, 32GB flash memory and long battery life make it ideal for remote and all possible large-scale identity management applications.

The Menroll100 employs the most advanced optical/LES technology that allows high-speed fingerprint image capturing and seamless image processing, ensuring the best image quality for slap fingerprints. And it features a state-of-the-art, scratch-resistant touch screen interface powered by Android OS.

This device is an absolutely ideal choice for all your civil, criminal identification, and border security applications, such as voter registration, national ID enrollment, applicant background checks, airport security, etc.


The mENROLL100 Handheld Biometric Enrollment System delivers efficiency and simplicity. Our cutting-edge approach creates a seamless method of collecting biometric data while also enabling exceptional mobility without sacrificing accuracy. This device is designed for field operations and is equipped with powerful and cutting-edge technology that allows for easy, secure, and accurate biometric enrollments from anywhere. The mENROLL100 captures and processes high-quality biometric data on-site, making it an ideal solution for government ID programs, business security, and welfare schemes.

The standout feature of the mENROLL100 is its exceptional portability and versatility. In contrast to stationary systems, this handheld device provides the distinct ability to conduct biometric enrollments on the field, thereby enabling access to remote populations. For projects that involve enrolling a large number of population across diverse geographical areas, portability and robustness are essential. The device's robust design is suitable for various environments, from urban environments to rural areas, ensuring reliable operation.

Additional Innovative Features:

Multi-Modal Biometric Capture:
It is versatile and secure in data collection tailored to specific project requirements.

Secure Data Encryption:
Utilizes advanced encryption techniques to protect sensitive biometric information adhering to the highest standards of data security.

User-Friendly Interface:
Designed with an intuitive user interface, the mENROLL100 allows for quick and easy operation.

Features At A Glance

Features At A Glance Features At A Glance

Features

Some of the significant features of our advance biometric fingerprint scanner device are listed underneath:-

IP65 Compliance

Compliance CE

Compliance ROHS & IS 13252(Part 1)

FBI PIV Certified Image Quality

FAP 50 Finger Print Scanner

Dual Core Arm Cortex A7, Max 1.5GHz

8MP AF camera with High brightness Flash LED

Android 10

2GB RAM + 32GB eMMC

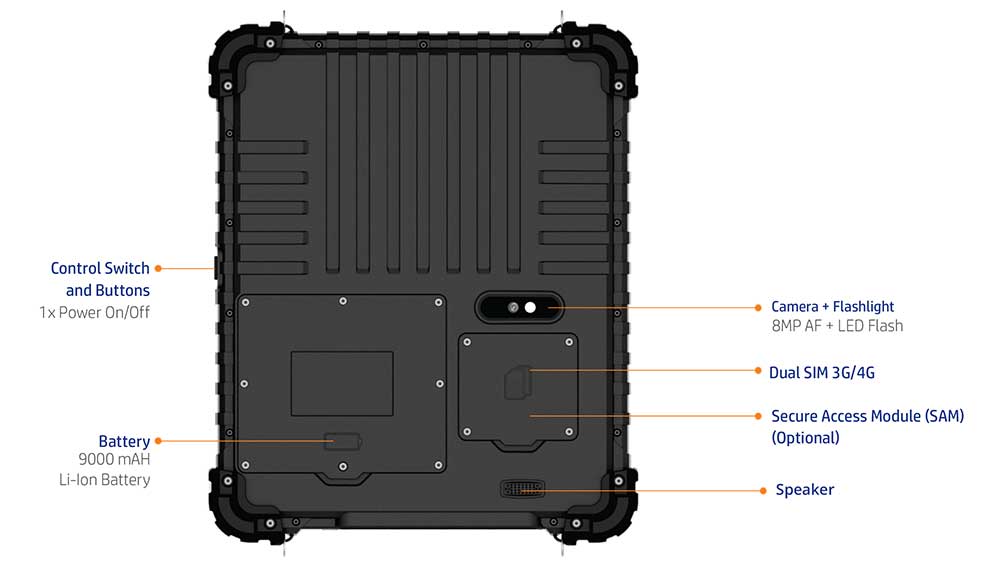

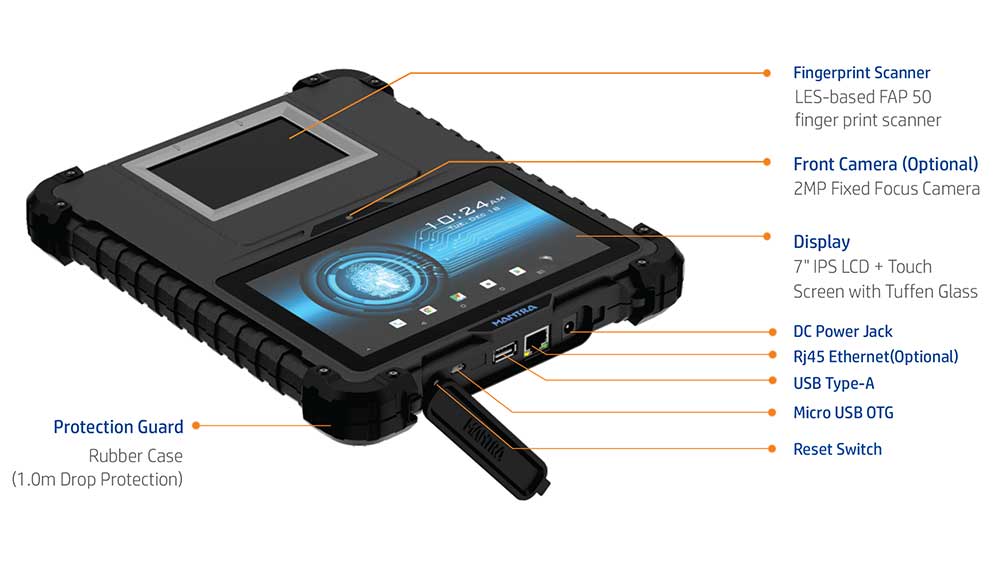

Specification

Feature exquisite specifications that are designed to address the modern-day requirements of individual identification and authentication.

Hardware & System

CPU :

ARM Cortex A53 @1.3GHz Quad Core Processor

Memory :

2GB RAM + 32GB eMMC

Micro SD Card :

Micro SD slot supporting up to 64 GB memory card

LCD :

7" IPS LCD with resolution (1024 X 600) with 16M colors

Touch :

Scratch Resistant Multi-Point Capacitive Touch Screen with 6H Toughen Glass

Operating System :

Android 10

Front Camera (Optional) :

2MP Fixed Focus Camera

Back Camera :

8MP AF camera with High brigthness Flash LED

Audio :

High-Quality 1W Speaker for Announcements

Control Buttons :

1x Power On/Off, 1x Reset Key

Operating / Storage Temperature :

0 Deg - 45 Deg C

Operating Humidity :

10%-90% RH (Non-Condensing)

Device Dimensions (L x W x H) :

265 x 218 x 34 mm

Weight :

Approx 1.130kg

Compliance :

CE, RoHS, BIS, IP65

Fingerprint Sensor

Fingerprint Type :

LES-based FAP 50 finger print scanner

Fingerprint Image :

1600 W x 1000 H pixels

Image Specs :

500 PPI 256 grayscale dynamic range

Certifications :

CE, FCC, RoHS, FBI Appendix F-certified, Mobile ID IQS FAP50, GSA FIPS201, IEC 61000-4-2

Interfaces

2G :

GSM/GPRS/EDGE: 850/900/1800/1900

3G :

WCDMA: B1/B2/B5/B8

4G FDD :

B1/B3/B5/B7/B8/B38/B40/B41

4G TDD :

All Band

Wi-Fi 2.4GHz & 5.0 GHz :

IEEE 802.11 a/b/g/n with Flex antenna

Bluetooth :

BT & BLE 4.0 with Flex Antenna

GPS :

16 Channel NMEA Compliant with Flex Antenna, AGPS Supported

SIM Socket :

2 x SIM Socket

DC Jack :

1 x DC Power Input

Micro USB :

1 x Micro USB Port for PC Connection as debug port

USB :

USB2.0 Type A (for pendrive connection)

RJ45 Ethernet (Optional) :

Ethernet 10/100 Mbps

SAM Slot (Optional) :

1 x SAM Socket (As per ISO7816 standard)

RTC (Optional) :

3V

Contactless Card (optional) :

13.56 MHz Contactless Card Reader ISO14443 A & B, MIFARE Classic (1K & 4K), MIFARE Ultralight, MIFARE DESFire

Electrical

Power Adaptor :

Input AC: 90~265V, 50Hz ; Output DC: 12V/2A

Battery Pack :

Li-Ion 9000 mAh Rechargeable & Replaceable Battery
