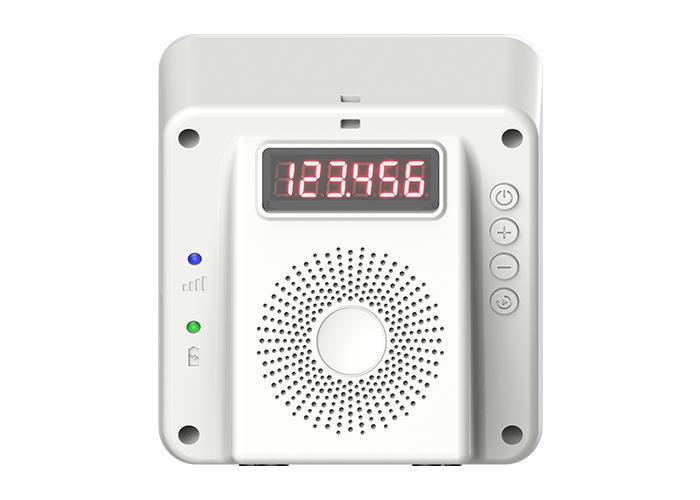

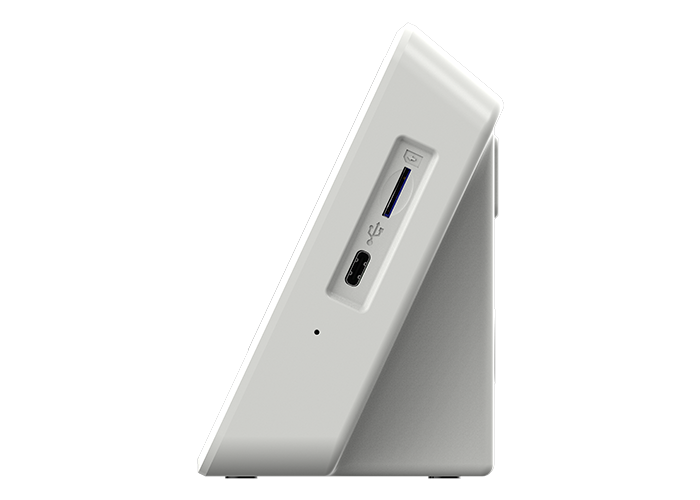

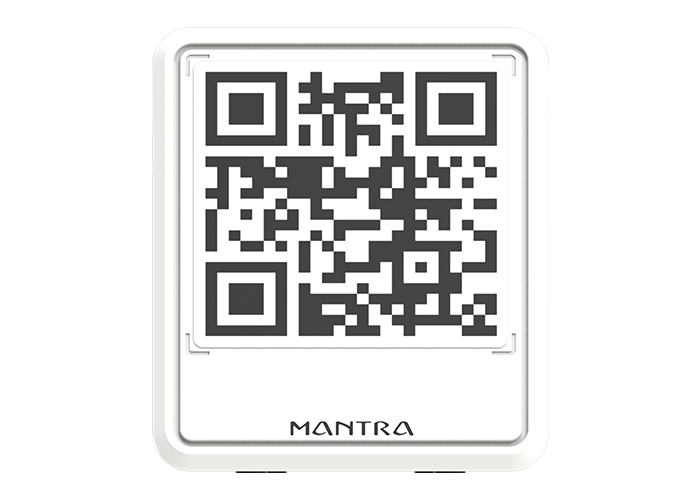

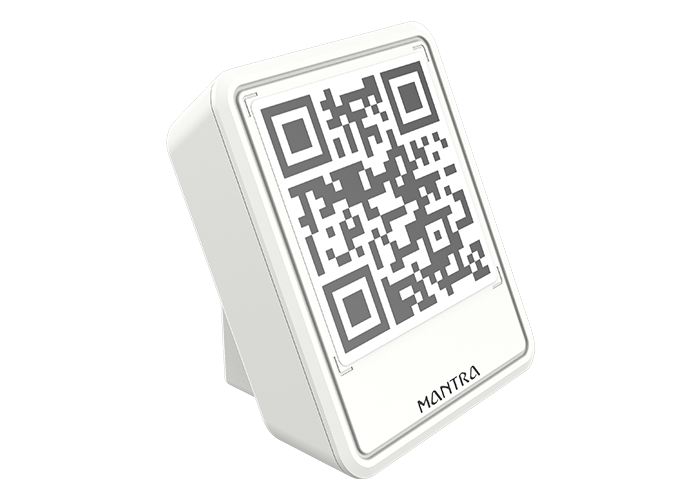

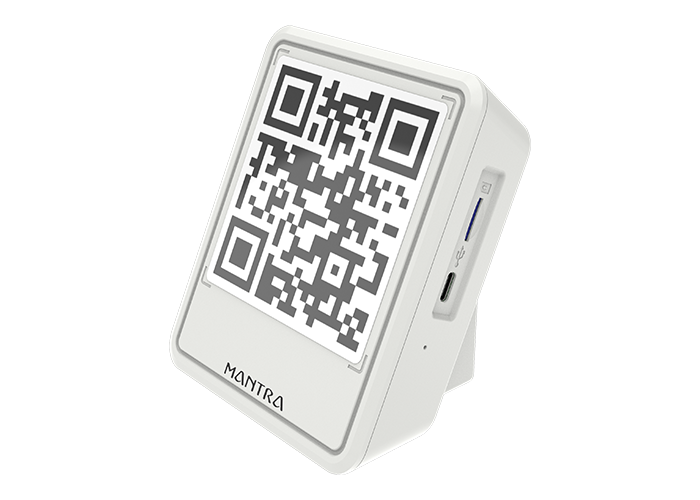

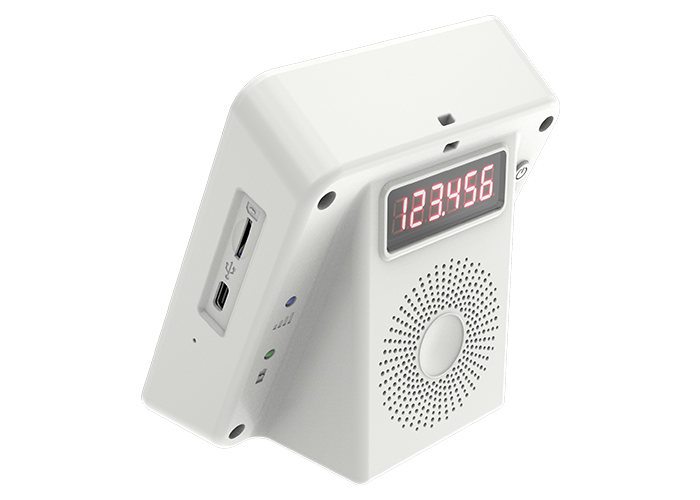

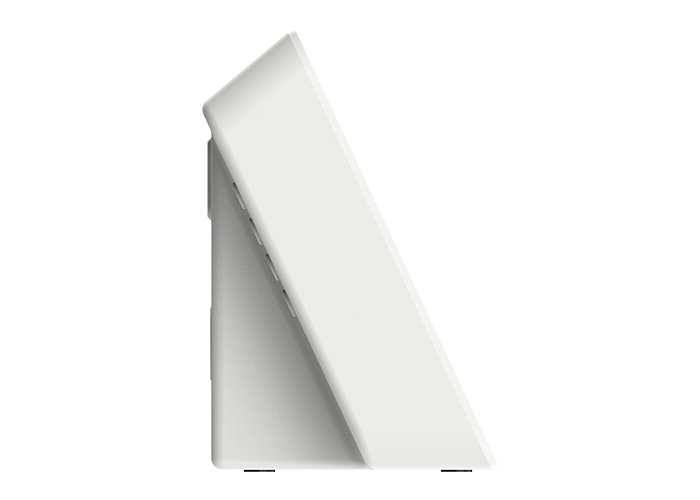

Payment Soundbox for UPI Payment with Secure Transactions MS20

MS20UPI Payment Soundbox

A wireless payment device built to provide smart, safe, and convenient payment processing by giving quick voice payment confirmation.

Get In Touch

Unveiling Innovative Payment Sound Box

With the Payment Sound Box, customers are immediately notified when their payment is accepted or declined, which can help reduce the time spent waiting in lines and increase overall customer satisfaction by bringing transparency.

By leveraging the power of QR code-based payment technology, the payment sound box has the potential to revolutionize the way businesses and customers interact during the payment process.

Smart Applications

Restaurant

Scenic Spot Entrance

Convenience Store

Toll station

Parking lot

Supermarket

Features

Our Payment Soundbox enhances transaction experiences with audio confirmation, ensuring secure and clear payment notifications.

Integrated user friendly design

Over The Air (OTA) firmware updates for DFOTA & Music Files

Instant Sound Notification for payment transaction, Battery, Device and Network.

Loud 85db sound output for clear communication

LED indication for Network and Battery

Time Sync from NTP

7-Segment display feature to show received amount (Optional)

Specification

Features high-quality audio, durable design, and compatibility with multiple payment systems.

General Characteristics

CPU :

ARM® Dual-core Cortex-A5, 500MHz

Memory :

RAM: 16MB

FLASH: 24MB

SIM Card Slot :

1x Micro Sim Card

Display :

7 Segment LED Display (6 - Digit)

LED Indication :

1x Battery status, 1x Network Connectivity

OTA :

DFOTA and Music file Update Over The Air

Speaker :

4 Ohm 3W (Adjustable Volume)

Power Supply :

DC 5V / 1A

Peripheral Ports :

1x Powered USB TYPE-C

Dimensions (L x W x H) :

112 x 100 x 73 mm

Weight Approx :

0.28 Kg

Battery Capacity :

2000mAh Li-ion Rechargeable Battery

Communication :

2G ( EGSM900/DCS1800)

4G (LTE-FDD:B1/B3/B5/B8 &

LTE-TDD:B34/B38/B39/B40/B41)

Button :

1x Power key, 1x Reset key, 2x Volume Up & Down key, 1x Function Key

Compliant to Following Standard

Electrical Safety :

BIS

EMI / EMC Compliance :

WPC ESD protection Contact Discharge :

+/- 8kV

Air Discharge :

+/- 15kV

Environmental, Health and Safety :

RoHS

Environmental

Operating Temperature :

0°C to +50°C

Storage Temperature :

-10°C to +70°C

Humidity (Operating / Storage) :

5% - 95%

RH, Non-condensing
