MARC11 Secure Fingerprint

Hardware-secured FAP10 capacitive fingerprint scanner with RSA2048, AES-GCM-256, and TEE support - engineered for high-assurance Aadhaar authentication and secure identity programs.

UIDAI Aadhaar STQC L1 Secure OEM High Assurance

Get a Quote Download PDF

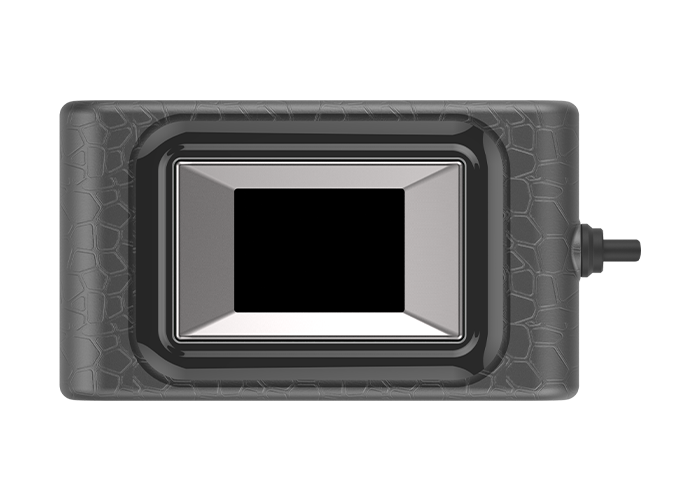

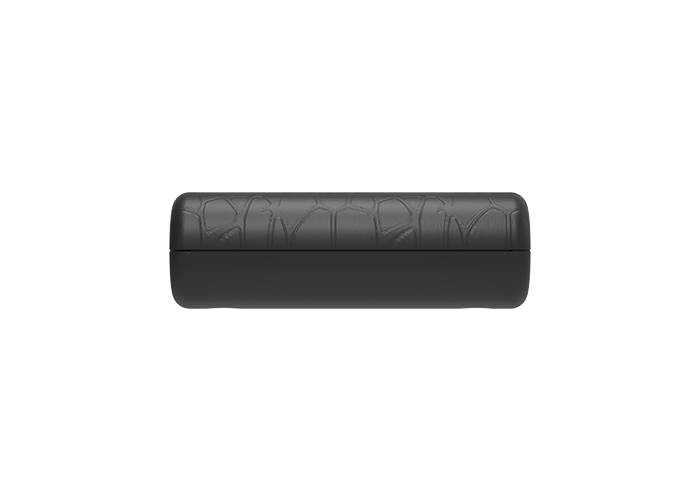

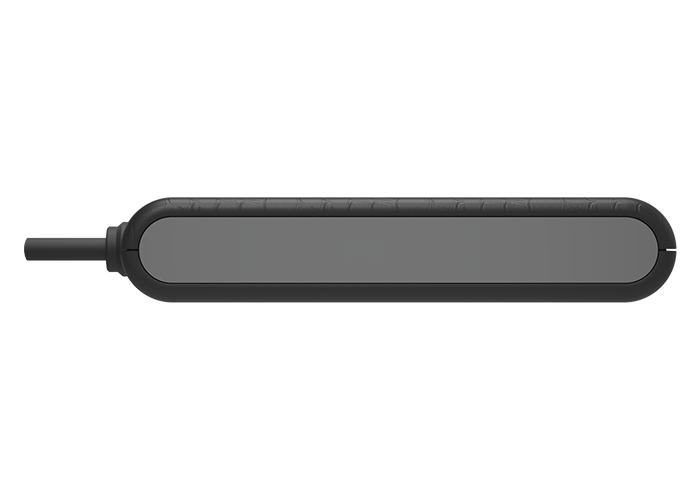

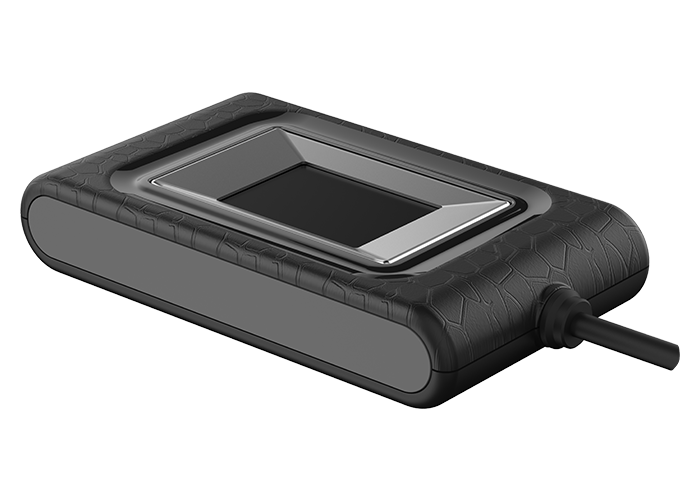

Mantra MARC11 Secure Capacitive Fingerprint Scanner

508 DPI FAP10 Sensor

UIDAI L1 RD Service Ready

Key Highlights

Hardware-Grade Security Meets Precision Capture

MARC11 combines hardware cryptography and TEE-based secure memory with STQC L1 certification for definitive Aadhaar-linked biometric authentication.

STQC L1 Certified

508 DPI | 256*360px | FAP10

Premium capacitive sensing captures high-quality images from a 12.8*18mm platen. Features latent finger detection and NIST quality checks to ensure only valid impressions are processed in under 2 seconds.

Hardware Encryption

RSA2048 | AES-GCM-256 | SHA-256

Dedicated crypto engine handles key generation and data encryption. TEE secure memory with key wrapping and Secure Boot prevent firmware tampering and root-level attacks on biometric data.

UIDAI L1 RD Service

ISO 19794-2/4 | WSQ3.1 | FBI PIV

Fully compliant with UIDAI L1 Registered Device standards for Aadhaar-enabled applications including AEPS and eKYC. Supports biometric data formats for all major middleware and ABIS platforms.

Rugged Protection

IP54 Device | IP67 Platen | 7H Surface

IP54 device-level protection with an IP67-rated platen for immersion resistance. Features a 7H surface hardness and 5B cross-cut rating to survive rigorous daily use in field conditions.

Industrial Durability

1M Wear Cycles | 50K MTBF

Engineered for longevity with a 1-million cycle wear rating on the sensor surface. Operates reliably from -20^oC to +70Â°C for deployment in extreme environmental conditions.

Embedded OEM Ready

USB 2.0 | 35*23*5mm Module

Ultra-compact core module designed for deep integration into OEM devices. Standard USB 2.0 Type-A connectivity with low operating current (<50mA) eliminates external power needs.

Advanced Technology

Built for High-Assurance Aadhaar Authentication

MARC11

Secure Capacitive STQC L1 Scanner

Security Engine

AES-256

RSA2048 | TEE | Secure Boot | SHA-256

Identity

UIDAI L1 RD Service RD Level 1

Durability

Sensor Placement Wear Cycle Rating

Ingress

IP67

IP67 Platen | IP54 Device Body Protection

Operating

-20^oC

Operation from -20^oC to +70^oC

MTBF

50K Hrs

Industrial Grade Mean Time Between Failures

Discover Our Solutions

Designed for Aadhaar and High-Security Programs

MARC11's UIDAI L1 compliance makes it the standard for government biometric programs.

Aadhaar | AEPS

Aadhaar AEPS & eKYC Authentication

STQC L1 certified capacitive scanner for banking correspondents and eKYC applications requiring UIDAI L1 compliance.

Access Control

Secure Physical & Logical Access

Liveness detection and anti-spoofing ensure only genuine fingerprints unlock systems in defense and enterprise environments.

Attendance | AEBAS

Biometric Attendance & AEBAS

Seamless USB connectivity for AEBAS terminals, corporate HR systems, and industrial factory attendance devices.

Specifications

Technical Details

Full specifications for technical integration and procurement.

Sensor Characteristics

Sensor Type

FAP10 Capacitive

Pixel Resolution

508 DPI 2%

Platen Size

12.8 mm * 18 mm

Image Size

256 * 360 Pixels

Acquisition Time

< 2 sec

Wear Cycles

1,000,000

Surface Hardness

MTBF

50,000 Hours

Capture Mode

Auto Finger Detection | NIST Quality Check | 360^o Rotation

Security Engine

Crypto Ops

Hardware-based RSA2048, AES-GCM-256, SHA-256, TRNG

Secure Storage

TEE Support | Secure Memory with Key Wrapping

Integrity

Secure Boot Firmware Protection

Interface & Electrical

Protocol

USB 2.0

Connector

USB Type-A Male

Voltage

+5.0V 5%

Current (Max)

< 50 mA (Op) | < 30 mA (Standby)

Environmental

Operating Temp.

-20^oC to +70^oC

Storage Temp.

-20^oC to +85^oC

ESD Contact

8kV

ESD Air

15kV

Salt Spray

Tested to IEC 60068-2-11 / IS 9844 / ASTM G85

Standards & Compliance

Data Formats

ISO 19794-2/4:2005&2011, WSQ3.1

Certifications

STQC Certified, UIDAI L1 RD Ready

Image Quality

FBI PIV, Mobile ID FAP10

EMI/EMC

CE & FCC Part 15B Class A

Safety

EN/IEC 62368-1, IS 13252

IP Rating

IP54 (Device), IP67 (Platen)
