IRIS Scanner

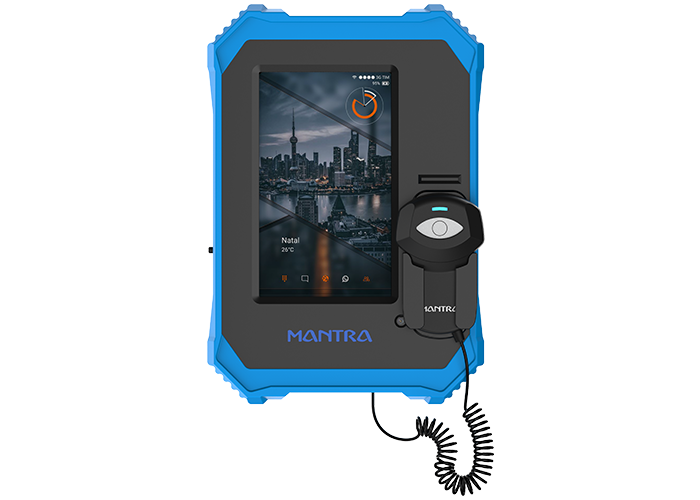

Mantra MISTAB biometric device is a comprehensive and affordable solution for iris recognition equipped with WiFi enabled IRIS Sensor. IRIS Scanner device can be used for various applications such as Biometric Attendance System, Access Control Management, Work flow Management, Canteen Management, Visitor Management, Worker Management and more.

Get In Touch Download Brochure


Our innovative IRIS recognition biometric devices will dramatically improve the ability to monitor your workforce movements during their working patterns. Biometric eye scanner comes with compelling features that provide you with a better time and management reporting. With IRIS scanner device superior accuracy and affordable performance can be achieved through our integrated camera feature with the Android operating system based tablet.

Parameters Specification
Processor: 1.2 GHz Quad Core
Display: 7 inch or higher ; 1024x600 resolution
Memory: Internal memory - 8 GB, RAM - 2 GB
Connectivity: Wi-Fi 802.11 b/g/n, Bluetooth v4.0 Single SIM with 4G support (Bands - LTE 850 (5), LTE 1800 (3), LTE 2100 (1), LTE 2300 (40))
Audio Jack: Microphone with High Amplitude Speakers
Camera: 5MP Rear Camera with auto focus and LED flash
Technology: GPS
Battery: 6000 mAH
Parameters Specification
Spatial Resolution: > 50% @ 1.0 LP/mm
Pixel Resolution: > 10 Pixels/mm
Image Margins Left & Right: >=0.6x IRIS Radius
Top & Bottom: >=0.2x IRIS Radius
Imaging Wavelength: 700-900 nm
Pixel Depth: 8 bits/pixel
Output Image: KIND1 to KIND7 with JPEG2000 Compression
Capture Mode: Auto capture with built-in quality check
Capture time: < 2 sec
Safety: Exempt Group per IEC 62471:2006-07
Health-Safety: RoHS Complaint
ESD Protection: Air discharge+-8 KV, Contact type+-4Kv
Radiated Emission: FCC part15B/IEC:CISPR 22 CLASS B standard
Radiated Immunity: As per IEC/EN 61000-4 3:2006+A2:2010
Connectivity: USB 2.0 / USB 1.1
Operating System: Support Windows XP, Win7, Win2008, Android, Linux, Embedded Linux

Talk to Mantra's Professional for bulk order.

Every client has unique requirement. Working together we’ll discover the right solution which fits in your budget to reach desire goal.
