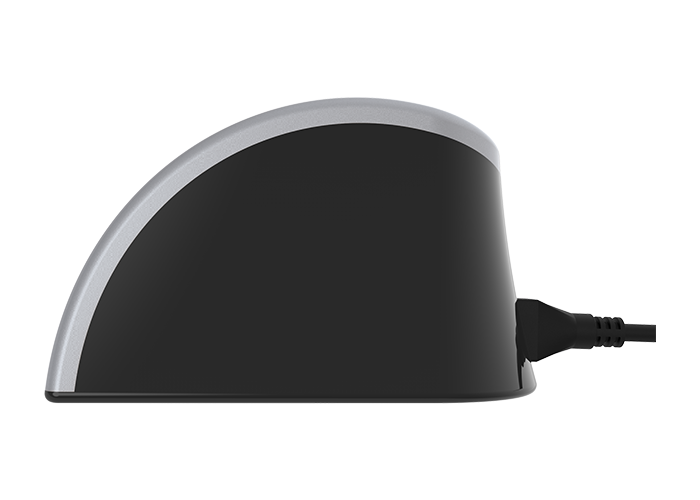

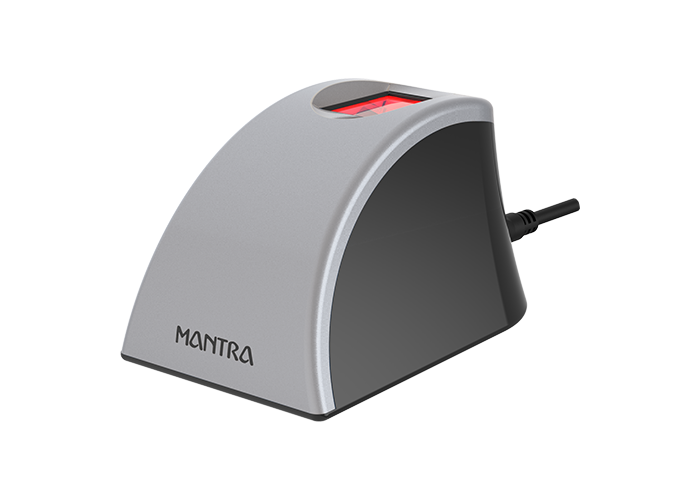

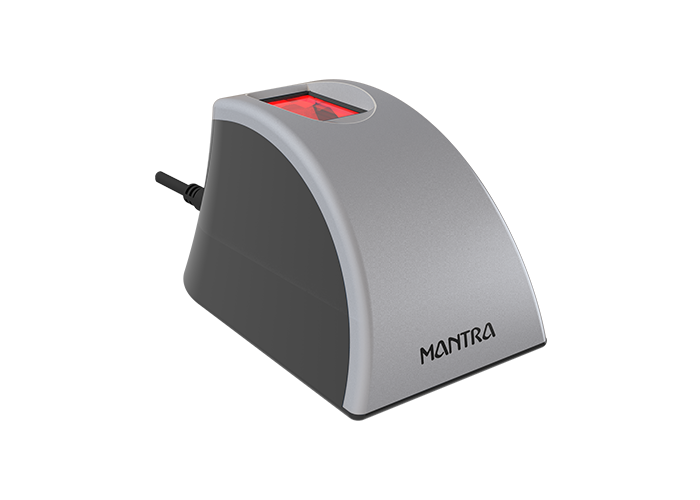

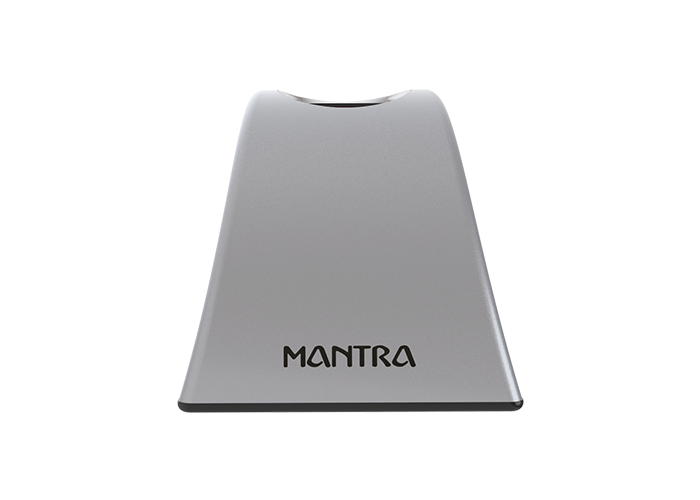

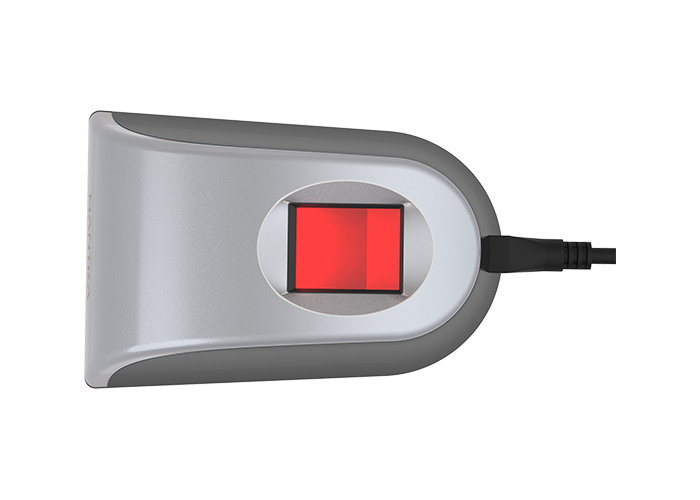

MFS100 V2 Biometric Fingerprint Scanner

MFS100 V2 is an optical fingerprint scanner utilized for biometric-based identity verification and user authentication of individuals. It is a secure, error-free, and reliable biometric sensor device, designed with unique fingerprint biometric technology.

Get In Touch

Our MFS100 V2 Biometric Fingerprint Scanner

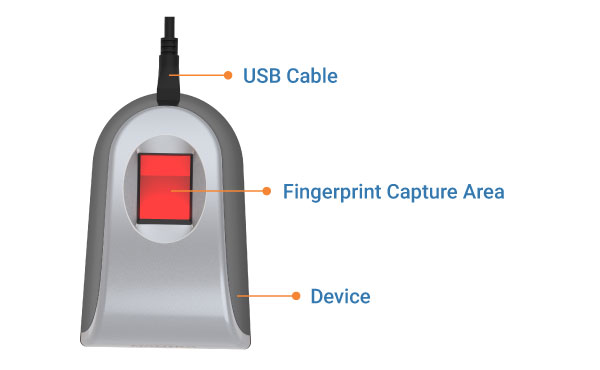

MFS100 V2 - our advanced biometric fingerprint scanner is an easy-to-use optical fingerprint technology-based scanning device, utilized for various identity verification and user authentication project needs. The optical scratch-free fingerprint sensor consists of a 15 mm x 18 mm active platen area for optimized fingerprint image capturing, ensuring that the entire area of an individual's fingerprint is captured relentlessly. Designed utilizing High-Performance Fingerprint Sensor with 500 +/- 2 % DPI and 256 Grey Levels, MFS100 V2 provides superior image quality. Our state-of-the-art portable fingerprint scanner device keeps the biometric data secure and safe while processing and transferring it.

Benefits

Handy device

Convenient to use

Easy-to-handle

Simple to operate

Error-free

Our Features

Scratch free Sensor Surface

USB 2.0 high speed interface

Lower FAR and FRR

500 DPI optical fingerprint sensor

Supports Windows Operating Systems

Supports Android Operating Systems

Supports Linux Operating Systems

At A Glance

Discover the cutting-edge features of our fingerprint scanner, designed for unmatched security and ease of use.

Our Certifications

Our fingerprint scanner is certified for quality and reliability, meeting rigorous industry standards.

Chartered
Engineers ( CE )

Federal
Communications Commission ( FCC )

Restriction of
Hazardous Substances ( RoHS )

Standardisation Testing &
Quality Certification ( STQC )

FBI Personal
Identity Verification ( PIV )

Safety Standard for
Information Technology Equipment ( IEC60950 )

Our Specifications

Detailed technical specifications of our fingerprint scanner, showcasing its superior performance and capabilities.

Sensor Characteristics

Fingerprint Sensor Type :

Optical Scratch-Free Sensor

Spatial Resolution :

500 DPI +/- 2%

Platen Size :

16.4 mm x 20.0 mm

Sensing Area :

15 mm x 18 mm

Image Size :

296 × 354 Pixels

Image Grayscale :

256 (8 - Bit Gray Level)

Maximum Acquisition Time (Placement to Template) :

< 2 sec

Light Source :

RED LED

Approx Dimensions (L × W × H) :

91 x 61 x 54 mm (Module: 28.5 x 23 x 62 mm)

Approx Weight :

0.141 Kg (Module : 0.025 Kg)

Capture mode :

Auto capture with built-in quality check (incorporates NIST quality considerations)

Electrical Characteristics

Operating Voltage :

5V +/- 5% (USB Powered Device)

Operating Current :

<=100 mA

Stand by Current :

<=37 mA

Interface :

USB 2.0

Environmental Characteristics

Operating Temperature :

0 to 50oC

Storage Temperature :

0 to 50oC

Humidity (Operating / Storage) :

< 90% RH, Non-condensing

Compliant to Following Standard

Biometric Data Interchange Format :

ISO 19794-2, ISO 19794-4, ANSI 378, WSQ3.1, JPEG2000

Environmental, Health and Safety :

RoHS

BIS :

IS 13252 (Part 1)

Safety :

EN / IEC 60950

EMI / EMC Compliance :

CE & FCC Part 15 B class A

Image Quality Performance :

FBI PIV Certification

*STQC Certification :

Compliance

IP Rating :

IP54

Device Driver :

WHQL Certified with Unique Serial Number

OS Supports :

Windows x86 & x64, Linux, Android

Our Position of Finger

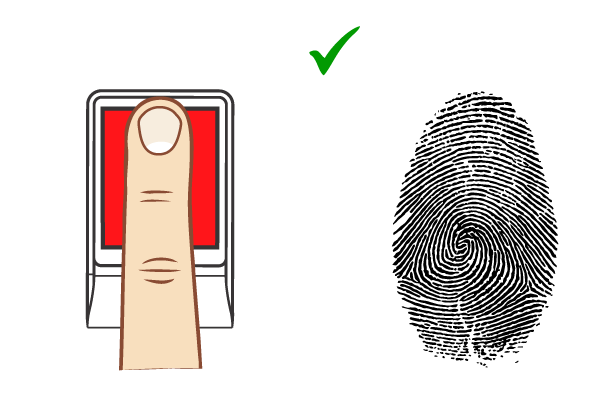

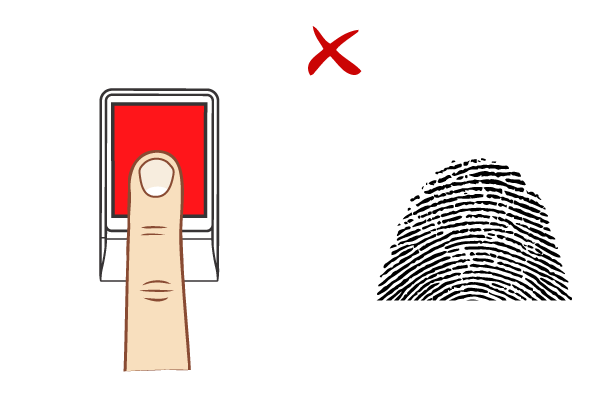

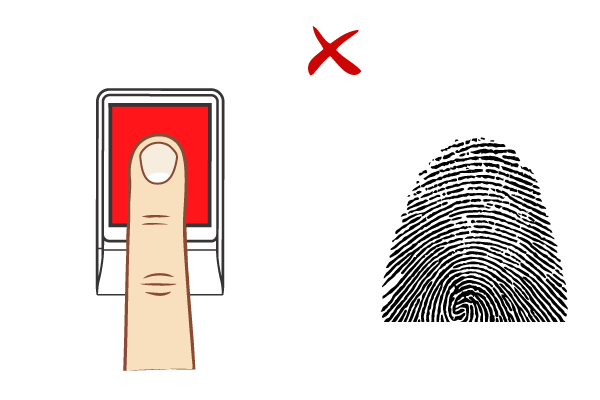

Finger Height:-

Align center of 1st phalanx with sensor center.

Alternate Text
Alternate Text
Alternate Text

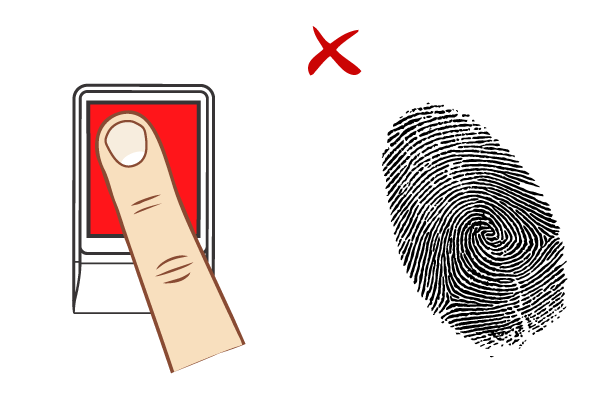

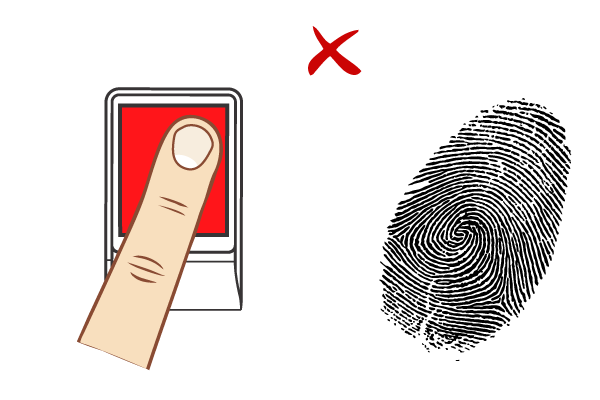

Finger Angle:-

The finger must be parallel to sensor sides.

Alternate Text
Alternate Text
Alternate Text

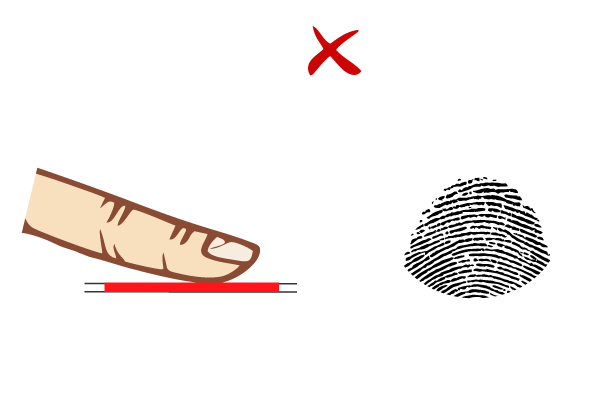

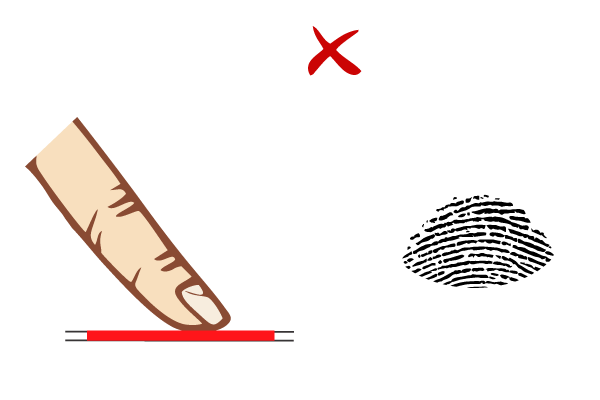

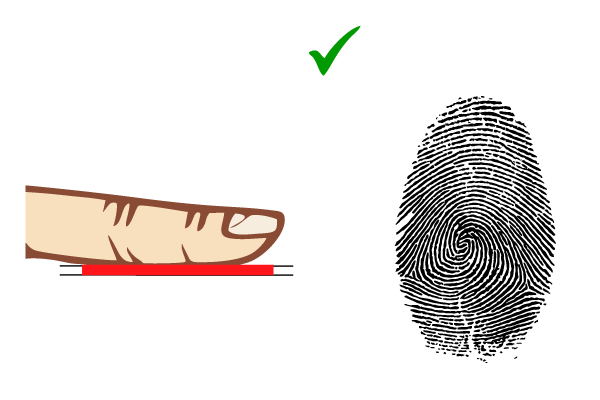

Finger Inclination:-

Finger must be parallel to the sensor surface.

Alternate Text
Alternate Text
Alternate Text

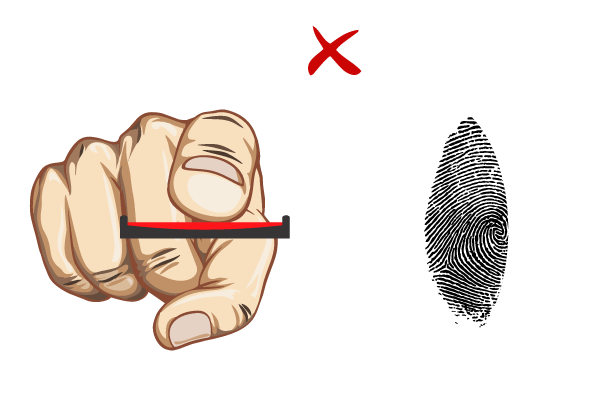

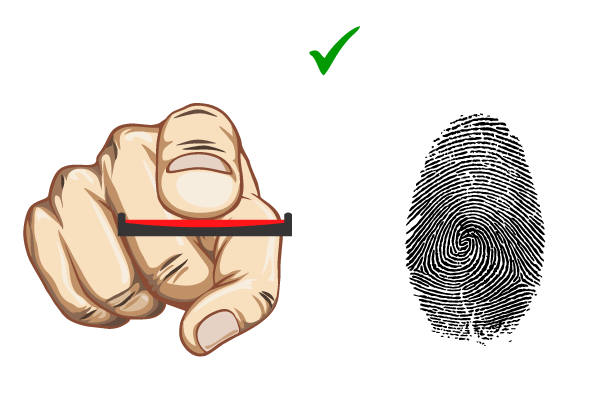

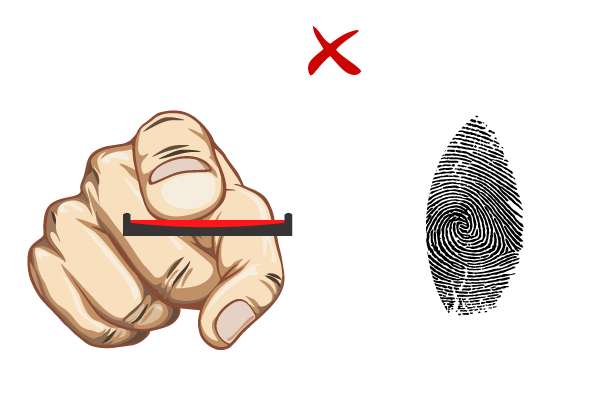

Finger Rotation:-

Finger must be parallel to the sensor surface.

Alternate Text
Alternate Text
Alternate Text
