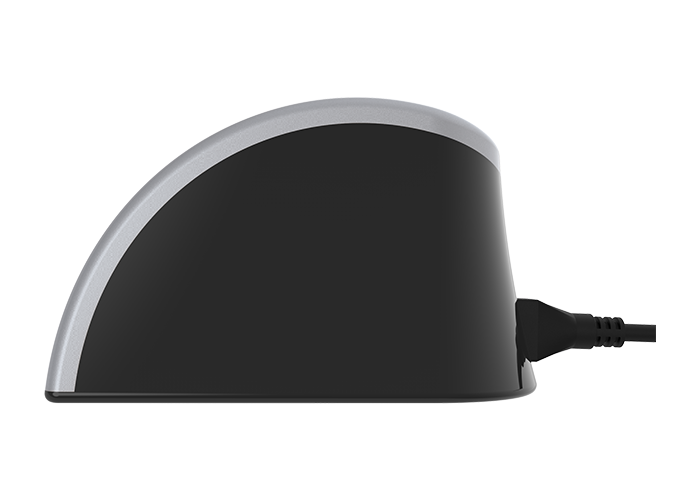

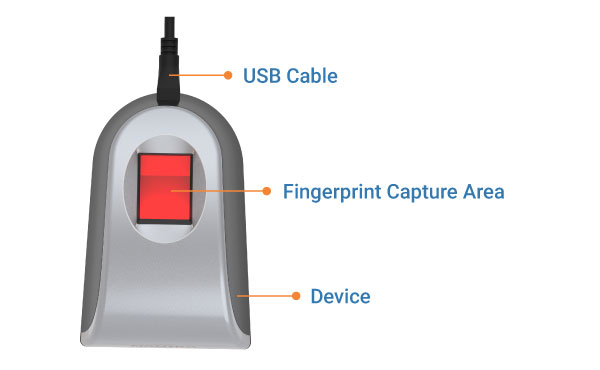

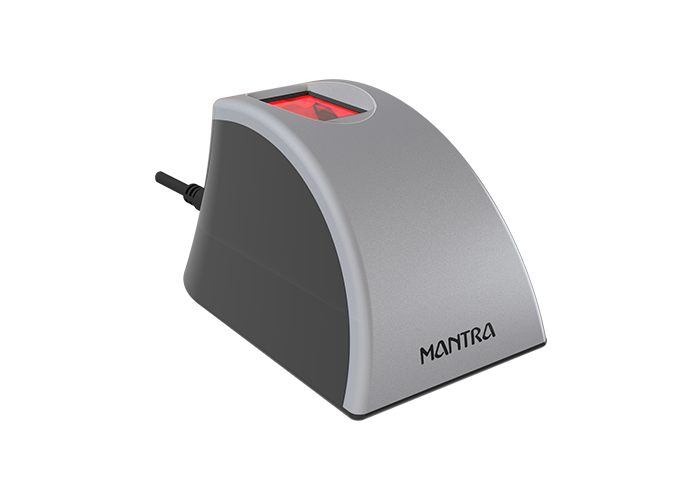

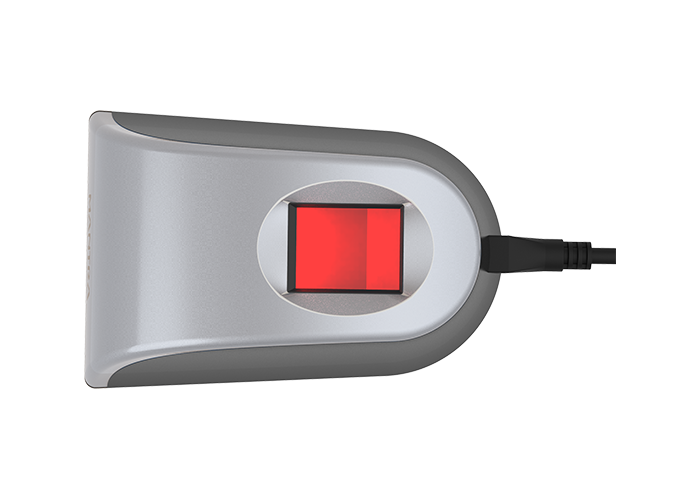

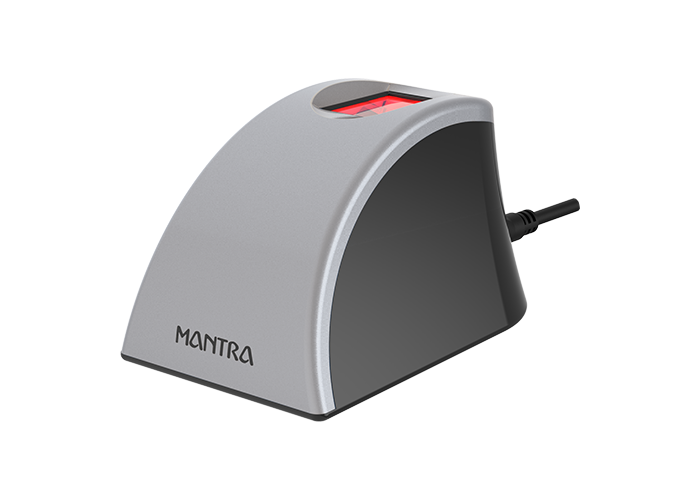

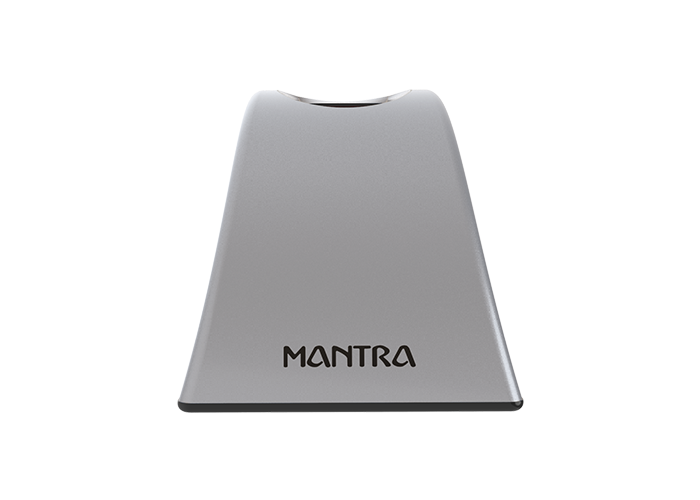

MFS100 Biometric Fingerprint Scanner

Fingerprint scanner is based on optical sensing technology which efficiently recognizes poor quality fingerprints. Mantra MFS100 fingerprint scanner is a high-quality USB fingerprint sensor for fingerprint authentication identification and verification function.

Get In Touch

Our MFS100 Biometric Fingerprint Scanner

Fingerprint Scanners is a biometric device for authentication and identification through fingerprint recognition module which has superior execution, precision, toughness based on the fingerprint reader. Fingerprint Reader or Scanner is very safe and easy to use device for security compared to remembering the password that is vulnerable to fraud and difficult to keep in mind. Utilize USB Fingerprint scanner with our biometric software for verification, identification and authentication functions through fingerprint can act like computerized passwords that cannot be misplaced, overlooked or stolen. Our STQC certified fingerprint scanner is made of hard optical sensor which is resistant to scratches, impact, vibration and electrostatic shock.

Applications

PC/Network security

E-commerce

Groupware

Time and attendance system

Smart card application

Public application

AFIS

Health and Medical

Our Features

Scratch free Sensor Surface

USB 2.0 high speed interface

Lower FAR and FRR

500 DPI optical fingerprint sensor

Supports Windows Operating Systems

Supports Android Operating Systems

Supports Linux Operating Systems

At A Glance

Discover the cutting-edge features of our fingerprint scanner, designed for unmatched security and ease of use.

Our Certifications

Our fingerprint scanner is certified for quality and reliability, meeting rigorous industry standards.

Chartered
Engineers ( CE )

Federal
Communications Commission ( FCC )

Restriction of
Hazardous Substances ( RoHS )

Standardisation Testing &
Quality Certification ( STQC )

FBI Personal
Identity Verification ( PIV )

Safety Standard for
Information Technology Equipment ( IEC60950 )

Our Specifications

Detailed technical specifications of our fingerprint scanner, showcasing its superior performance and capabilities.

Fingerprint Sensor :

Optical (Scratch Free Sensor Surface)

Image Resolution :

500 DPI / 256 Gray

Platen Area :

14 x 16 mm

Operating Temperature :

0~50°C

Standards :

ANSI-378, ISO19794-2

Supports Encryption Algorithms :

AES256, RSA2048

Supports Hashing Algorithms :

MD5, SHA256

Traceability :

Every Device Has a Unique Physical Device ID

Interface :

USB 2.0 High Speed/Full Speed, Plug & Play

Certification :

PIV, CE, FCC, RoHS, IEC60950 Certified

Platen :

Hard Glass

Sensor Certification :

STQC/UIDAI

Operating System :

Android, Windows, Linux

Our Position of Finger

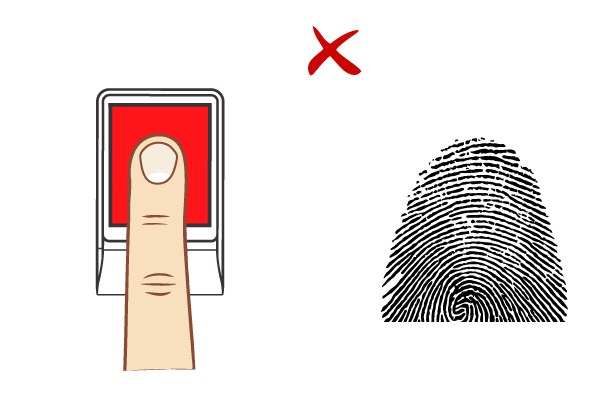

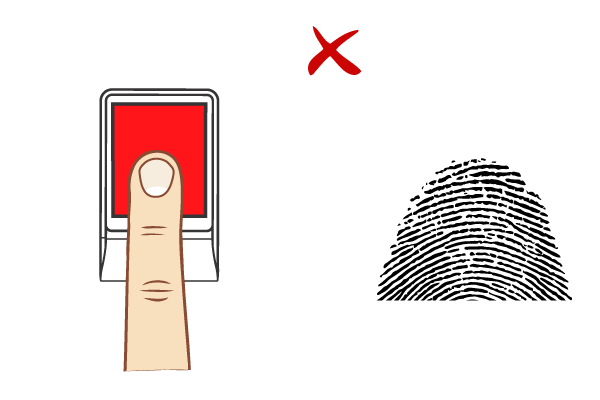

Finger Height:-

Align center of 1st phalanx with sensor center.

Alternate Text
Alternate Text
Alternate Text

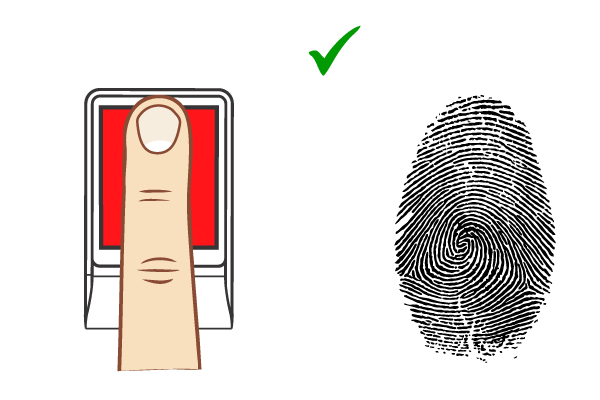

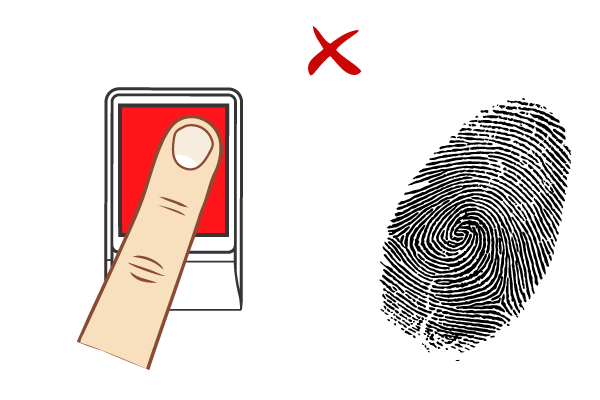

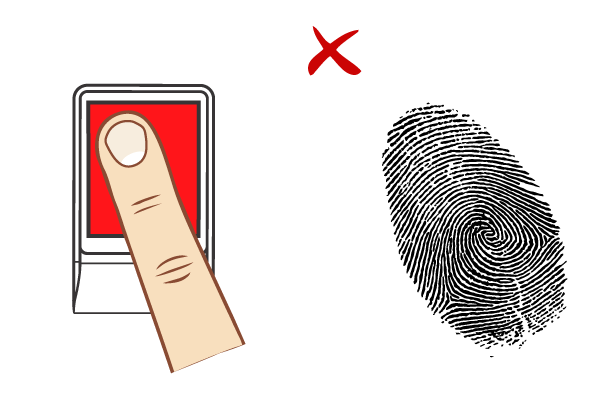

Finger Angle:-

The finger must be parallel to sensor sides.

Alternate Text
Alternate Text
Alternate Text

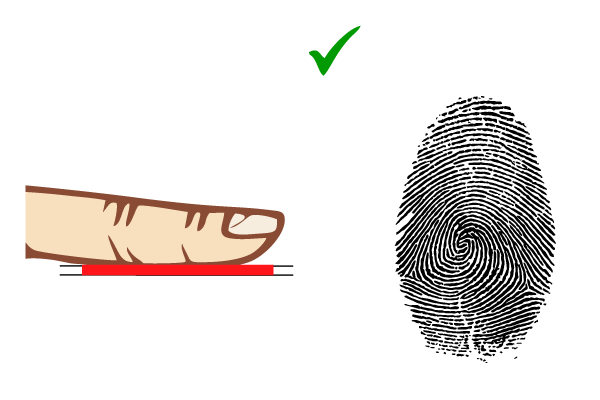

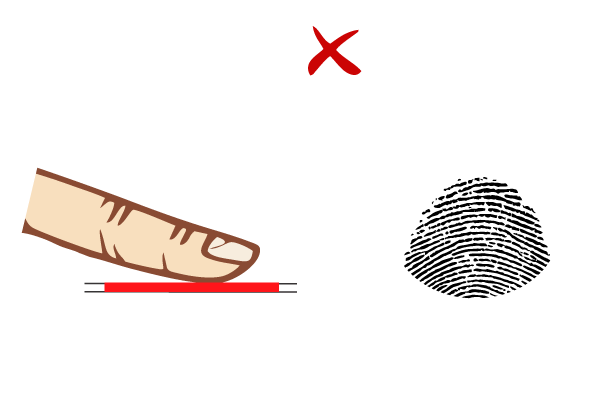

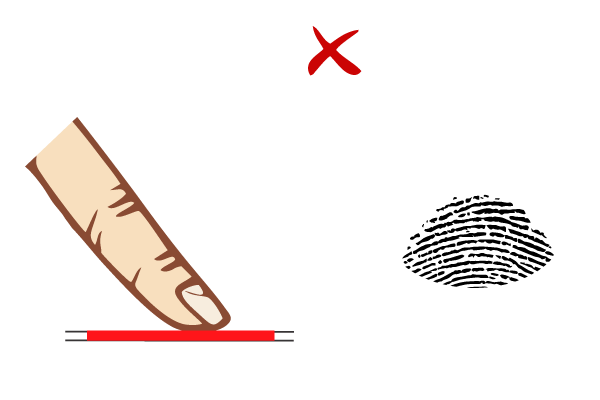

Finger Inclination:-

Finger must be parallel to the sensor surface.

Alternate Text
Alternate Text
Alternate Text

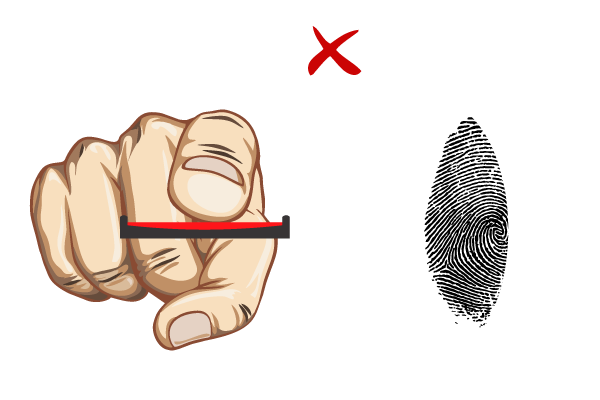

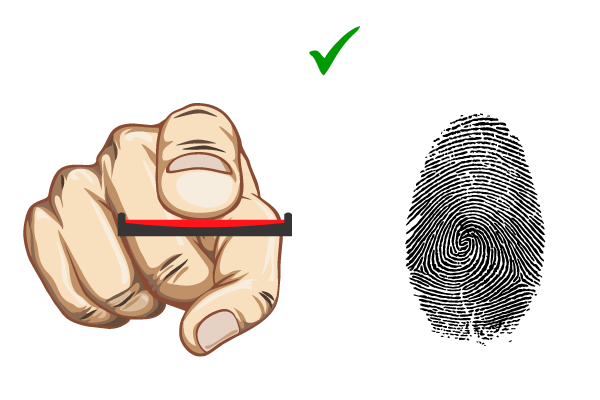

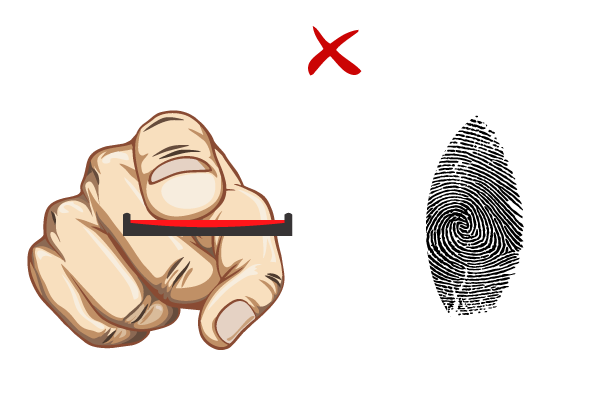

Finger Rotation:-

Finger must be parallel to the sensor surface.

Alternate Text
Alternate Text
Alternate Text

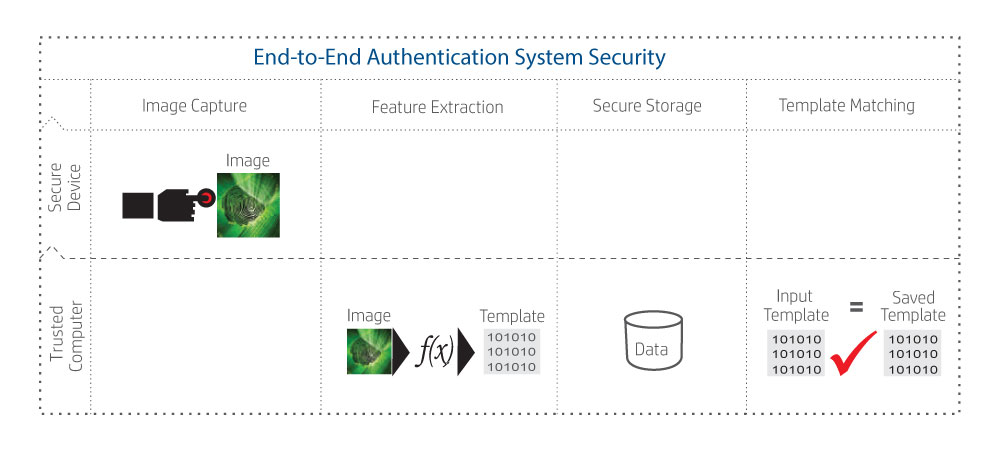

End-to-End Authentication System Security

Our Downloads

Download comprehensive user guides and informative brochures to get the most out of your fingerprint scanner.

Product Brochure
User Guide
