BioNIC X4 Multi Modal Biometric System

Where Advanced Face Scanning Meets Breath Analysis for Enhanced Safety

Get In Touch

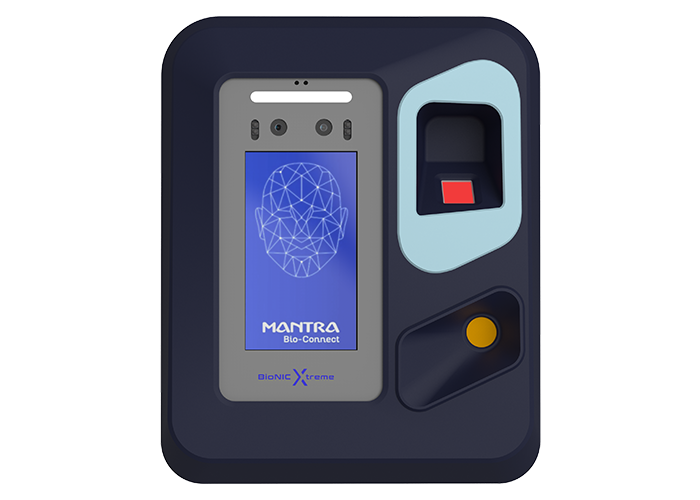

Our BioNIC X4

Experience the pinnacle of security technology with BioNIC X4. This groundbreaking device combines the trifecta of advanced biometric authentication methods: Facial Recognition (FR), Fingerprint scanning (FP), and a state-of-the-art Breath Analyzer. X4 ensures not only the highest level of identity verification but also enhances safety by detecting alcohol levels in real-time, making it an ideal choice for industries prioritizing both security and safety. Elevate your security infrastructure with BioNIC X4.


Introducing the upgraded BioNIC X4, now equipped with an integrated breath analyzer. This innovative enhancement blends high-precision facial recognition with alcohol detection, offering a multifaceted approach to security that emphasizes both safety and responsibility. Ideal for any organization dedicated to maintaining the highest standards of safety, the BioNIC X4 is redefining what it means to secure a space.

The BioNIC X4 isn't just a device for maintaining security—it is designed for working in harsh environments. Combining facial scanning technology with a breath analyzer provides an additional layer of protection that ensures only authorized and sober individuals can enter, which is very critical or sensitive areas.

The BioNIC X4 with Integrated Breath Analyzer is not only a technological advancement but also a step forward in fostering safer workplace cultures and public spaces. Whether it's at a corporate office, manufacturing site, or transportation hub, this device is crucial for ensuring that everyone in the vicinity is upholding the community standards essential for safety and well-being.

Key Features

BioNIC X4 with Breath Analyzer

Rapid & Reliable
Facial Recognition:

The device offers swift and accurate identification, allowing for smooth entry processes while ensuring only authorized access.

Innovative Breath
Analysis:

Integrated seamlessly, the breath analyzer screens for alcohol levels, enforcing health and safety policies effectively and discreetly.

Straight for ward &
Intuitive Use:

Designed with user-friendliness in mind, the BioNIC X4 provides clear instructions and quick feedback, making it easy for anyone to use without extensive training.

Effortless
Integration:

This updated model fits seamlessly into existing security setups, enhancing capabilities without the need for complex system overhauls.

Robust &
Dependable:

Built to last, the BioNIC X4 withstands diverse environmental conditions and demands, ensuring reliable performance wherever it's placed.

Features

Some of the significant features of our advance biometric fingerprint scanner device are listed underneath:-

Fingerprint Sensor

Dual RGB and Near Infrared Camera 2 Million WDR Pixel Resolution

2.2GHz Quad core ARM Cortex-A73

2GB RAM + 16GB eMMC

ISO14443 Type A/B Cards, Mifare Classic / Desfire

5 Inch, Vertical Screen H1080 * W1920 Resolution Multi point capacitive touch screen with tuffen glass

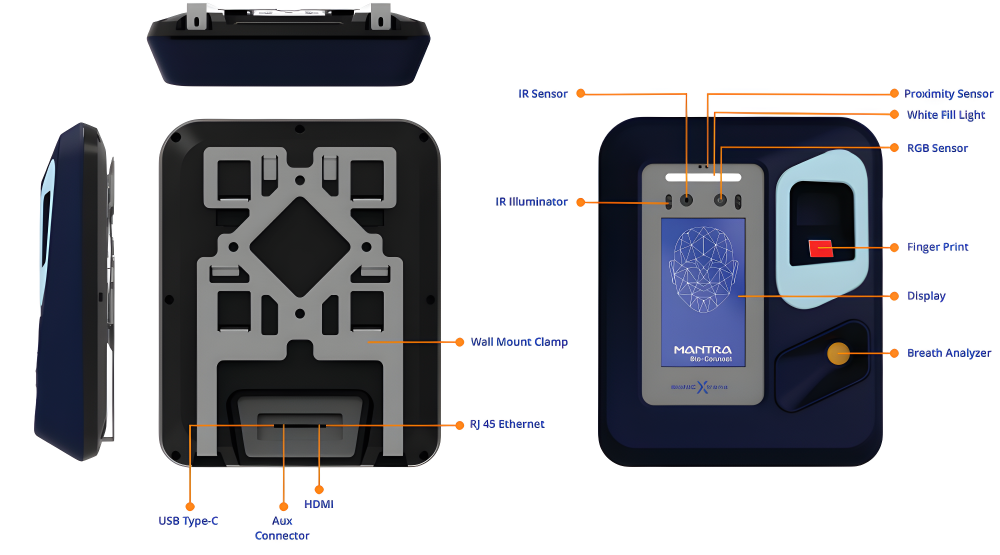

At A Glance

Experience the pinnacle of security technology with BioNIC X4.

Specification

Feature exquisite specifications that are designed to address the modern-day requirements of individual identification and authentication.

General Parameter

Casing :

ABS top & bottom enclosure

Protection Grade :

Dust Proof

Operating Temperature :

- 10℃ ~ 60℃

Storage Temperature :

- 20℃ ~ 60℃

Operating Humidity :

10%-90% RH (Non-Condensing)

Dimensions :

271 x 220 x 57.5 mm

Weight :

Approx 1Kg

Mounting Type :

Wall Mount

Certifications :

CE, RoHS

Hardware & System

CPU :

2.2GHz Quad core ARM Cortex-A73 and 1.8GHz dual core Cortex-A53

GPU :

ARM G52 MP4 GPU

RAM Memory :

2GB

Storage Memory :

16GB

Display & Touch

Display :

5 Inch, 1080X1920 Resolution, Full view IPS TFT Display

Touch :

Multi point capacitive touch screen with tuffen glass

Binocular Wide Dynamic Camera (RGB + IR)

Camera Type :

Dual RGB and Near Infrared Camera

Pixel Resolution :

2M (1920 x1080)

Frame Rate :

30 FPS

Minimum Illumination :

0.1 LUX

Dynamic Range :

45dB Linear & 100 dB HDR supported for various light environment

Focus Distance :

30 -150 cm

White Balance :

Auto

Photo Flood Light :

Visible & IR dual Flood Light

Support :

Live Face Detection

Interface

Network Module :

1x RJ45, 10M/100M

Wi-Fi / BT :

Supported

Audio :

Supported

HDMI :

1 X HDMI

RS232 :

1 x RS232

RS485 :

1 x RS485

Wiegand Interface :

1 x Output ; 1 x Input

Relay Interface :

2 x Relay (NC, NO, COM)

Power Jack :

DC 12V/2A

GPIO's :

5 X GPIO

RTC :

Supported

Smart Card Reader

Contactless Card (Optional) :

ISO14443 Type A/B Cards, Mifare Classic / Desfire

Functions / Features

Face Detection :

Support multiple people detection and tracking

Face Database Capacity :

20000 / 50000

1:N Face Recognition :

Supported (20K, 50K)

1:1 Face-matching :

Supported

Stranger Detection :

Supported

Face Recognition Accuracy :

Normal Light Condition > 99.9%

External Light Condition > 95%

Liveness Detection :

Supported

Recognition Speed :

300 ms

Software

Operating System :

Customized Android

SDK :

Appropriate SDK for all accessories to be provided for Android

Fingerprint Sensor

Fingerprint Type :

Scratch Free Optical Sensor

Fingerprint Image :

316 x 354 Pixels ( 16 x 18 mm )

Image Specs :

500DPI, 8 Bit Grayscale

Certifications :

CE, FCC, RoHS, STQC, PIV, IEC60950, IS13252 Part I

4G Module

Sim Card Slot :

Nano SIM card slot

Speed :

150Mbps Download/50Mbps Upload

Antenna support :

1*4G Main , 1*4G DIV ,1 X GPS

Transmission Rate :

150Mbps

Grove - Alcohol Sensor

Detectable Concentration :

20-1000ppm

Response Duration :

Fast response and resumes quickly after alcohol exposure
