MBAS20L1 Aadhaar Enabled Biometric Attendance System

The MBAS20 is an advanced Aadhaar-enabled biometric attendance system designed to ensure accurate and efficient attendance management. Equipped with L1 certification, it is fully compliant with UIDAI guidelines, making it ideal for government organizations and businesses that require Aadhaar-based authentication.

Get In Touch

Our MBAS20 L1 Aadhaar Enabled Biometric Attendance System

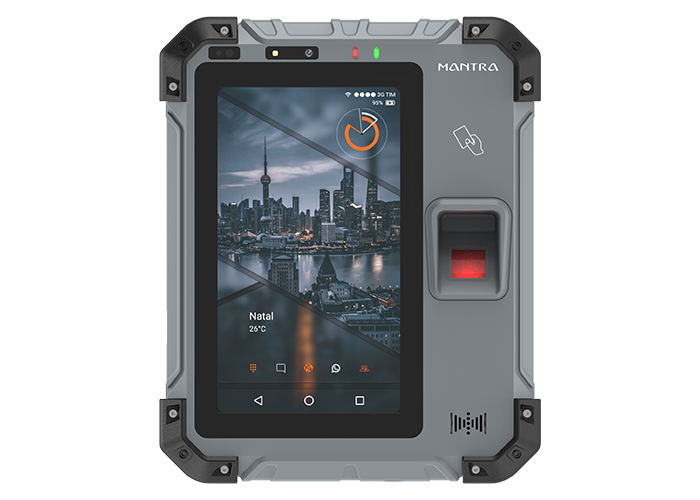

With the aid of an advanced biometric algorithm and PIV/STQC L1 certified FAP10 scratch-free optical biometric fingerprint sensor, Mantra's 7" L1 AEBAS Device MBAS20 is created to meet the need for precise individual identification for various applications like eKYC, access control, and time attendance.

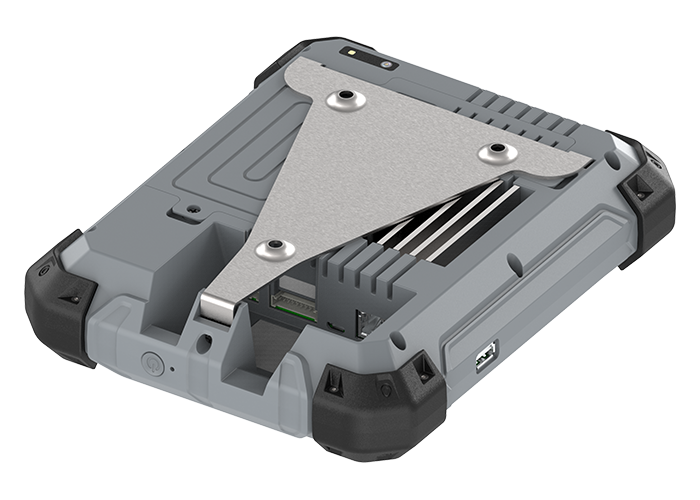

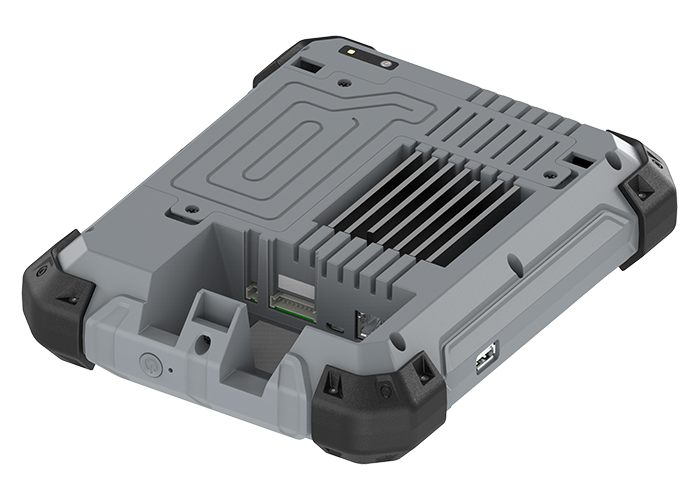

The MBAS20 can be used as a wall-mounted device for access control and time-attendance applications. The device's capacitive scratch-resistant touch screen with 6H toughened glass, and optimized thermal management makes it very robust. The latest biometric technology is used by MBAS20 to authenticate and identify users using their own fingerprint impressions. With builtin 4G, Ethernet, wireless, & GPS, the device displays increased connectivity, along with the 4,000 mAh battery with auto sleep & wakeup functionality increases battery backup.

Applications

Time-Attendance

Canteen Management

Banking & Finance

Resource & Manpower Management

School Bus Management & Tracking

Insurance Claim Processing

eKYC

Our Specifications

Hardware & System

CPU :

ARM Cortex A7 @1.5GHz Quad Core Processor

Memory :

2GB RAM + 16GB Flash

LCD :

7" TFT LCD with 1024x600 Resolution

Touch :

Scratch Resistant Multi-Point Capacitive Touch Screen with 6H Toughen Glass

Operating System :

Android 10

Front Camera :

2MP Fixed Focus

Back Camera :

5MP Auto Focus Camera with Flash LED

LED Indicators :

Power On/Off, Battery Charging Status

Audio :

High-Quality 1W Speaker for Announcements

RTC :

Yes

Object Detection sensor :

IR based Proximity sensor for device auto sleep & Wakeup

Control Buttons :

1x Power On/Off, 1x Reset Key

Operating / Storage Temperature :

0 Deg - 50 Deg C

Operating Humidity :

10%-90% RH (Non-Condensing)

Dimensions :

221 x 181 x 48mm

Weight :

Approx 0.8Kg

Certifications :

CE, RoHS, BIS, IP54

Fingerprint Sensor

Fingerprint Type :

Scratch Free Optical FAP10 L1 Sensor

Fingerprint Image :

276 x 336 Pixels

Image Specs :

500 DPI +/- 2%, 256 (8 - Bit Gray Level)

Certifications :

CE, FCC Part 15B, RoHS, STQC L1, FBI PIV, EN/IEC 62368-1, IS 13252 (Part 1)

Smart Card Reader

Contactless Card (Optional) :

ISO14443 Type A/B Cards, MIFARE Clasic 1K/2K/4K, MIFARE DESFire Light 1K, MIFARE DESFire EV1/EV2 4K, MIFARE Plus S 2K , NTAG

Interfaces

4G/3G/GPRS :

2G (850/900/1800/1900), 3G (B1/B2/B5/B8), 4G (B1/B3/B5/B7/B8/B38/B40/B41)

Wi-Fi :

IEEE 802.11 a/b/g/n (2.5GHz & 5.0 Ghz)

Ethernet :

10/100 Mbps

SD Card :

MicroSD Card (Supports up to 32GB)

Bluetooth :

BT + BLE 4.2

GPS :

16 Channel NMEA Compliant with Flex Antenna, AGPS Supported

SIM Socket :

1 x SIM Socket

DC Jack :

1 x DC Power Input

Micro USB :

1 Micro USB Port for PC Connection as debug port

RS-485 (Optional) :

1 Host or Slave (Selectable)

Wiegand (Optional) :

1 Input (26-Bit)

GPIO (Optional) :

5V TTL 1 x Output, 1 x Input

Relay (Optional) :

5V/3A Relay with Non-Potential Contacts (NC, NO, COM as Output)

USB 2.0 (Optional) :

USB2.0 Type A (for pendrive connection)

Electrical

Power Adaptor :

Input AC: 90 ~ 265V, 50Hz ; Output DC: 12V/2A

Battery Pack :

Li-Ion 4000 mAH Rechargeable & Replaceable Battery
