FAP20 | FBI PIV | IP65 | WBF | USB-IF

MFS200 FAP20 Optical Fingerprint Sensor

FAP20-certified optical fingerprint sensor with 500 DPI, FBI PIV image quality, IP65 protection, and ESD protection - designed for mission-critical financial services, e-governance, and merchant authentication.

Financial Services E-Governance PDS & Payment PC Security
Get a Quote Download PDF

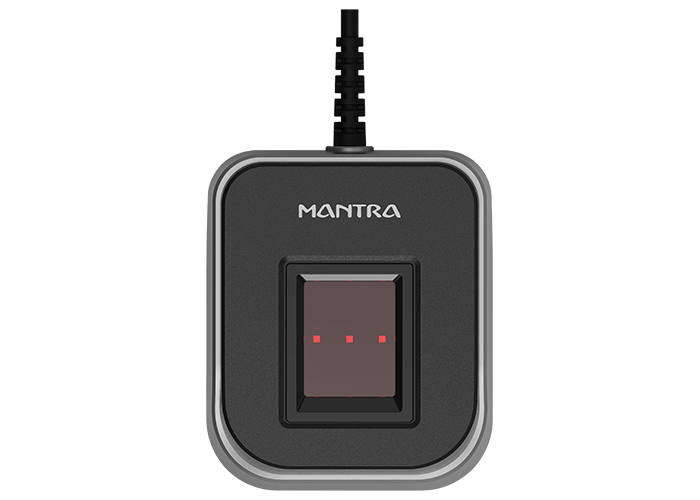

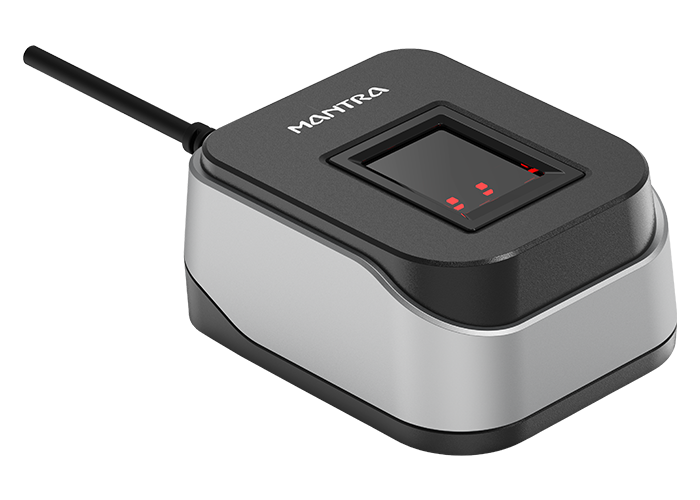

Mantra MFS200 FAP20 Optical Fingerprint Sensor
FAP20 Optical
IP65 Protected
FBI PIV Certified
Key Highlights

FAP20 Precision for Financial & Government

MFS200 bridges FAP10 and FAP30 with a certified 15.24*20.32mm sensing area - delivering high-performance capture in a compact desktop form factor.

FAP20 Optical | 500 DPI

High Resolution Sensing

Optical FAP20 sensor captures 300*400 pixel grayscale images from a generous 15.24*20.32mm sensing area using a RED LED light source for consistent image quality.
FBI PIV | WBF | USB-IF

Global Certifications

FBI PIV certified image quality ensures compliance with federal ID standards. WBF driver enables Windows Hello integration, while USB-IF certification guarantees interoperability.
Latent Detection | Low FAR

Industry-Leading Accuracy

Latent finger detection prevents residual fingerprint spoofing. Industry-leading FRR < 0.1% and FAR < 0.001% make it ideal for financial-grade biometric transactions.
ESD Protection | Rugged

Extreme Durability

Superior ESD protection (8kV contact, 15kV air discharge) and IP65 rating. Operates reliably from-10oC to +70oC in demanding industrial or field environments.
1:1 & 1:N Morfin SDK

Comprehensive Software

Bundled with Morfin Authentication (verify) and Search (identify) SDKs. Supports all biometric use cases from simple login to large-scale database identification on Windows & Android.
Compact OEM Module

Verasatile Integration

Compact 68*56.5*31.5mm device footprint. Also available as an ultra-compact OEM module (35g) for embedding into ATMs, POS terminals, and kiosks.
Advanced Technology

Built for Financial-Grade FAP20 Authentication

The trusted choice for identity verification across banking, e-governance, and public delivery systems.

Sensor Grade
FAP20
500 DPI | 300*400px | 15.24*20.32mm - extensive platen coverage for larger fingerprints.
Protection
IP65
Dust-tight | Water-jet protected | ESD 8kV contact / 15kV air discharge.
Certification
FBI PIV
WBF driver | USB-IF | CE | FCC | RoHS | EN/IEC 62368-1 compliant.
Accuracy
FRR < 0.1%
FAR < 0.001% | MINEX certified | Latent finger detection for spoof prevention.
SDK Support
Morfin
1:1 & 1:N matching | Windows Hello integration | Android 7+ support.
Sector Solutions

Discover Our Solutions

MFS200's FBI PIV certified sensor and Morfin SDK make it the global benchmark for secure identity verification.

Government | UIDAI

Citizen Identification

FAP20 capture powers Aadhaar eKYC, AEPS transactions, and e-governance beneficiary authentication programs.
Banking | Payment

Enterprise Security Solutions

FBI PIV certified precision for account opening, KYC verification, and retail biometric checkout in financial institutions.
Platform | Desktop

Biometric Technologies

Windows Hello compliant desktop authentication for secure enterprise login, VPN access, and privileged identity management.
Specifications

Technical Details

Full technical breakdown for procurement, integrators, and IT managers.

Sensor Characteristics
Sensor Type
Scratch-Free Optical FAP20
Pixel Resolution
500 DPI 2%
Sensing Area
15.24 mm * 20.32 mm
Image Size
300 * 400 Pixels
Image Grayscale
256 (8-Bit Gray Level)
FRR | FAR
< 0.1% | < 0.001%
Max Acquisition Time
< 2 sec
Illumination
RED LED
Capture Mode
Auto Finger Detection | Auto Capture with NIST Quality Check
Electrical Characteristics
Protocol
USB 2.0
Operating Voltage
5V 5%
Operating Current
< 100 mA
Standby Current
< 50 mA
Environmental Characteristics
Operating Temp.
-10oC - +70oC
Storage Temp.
-20oC - +85oC
Humidity
< 90% RH, Non-Condensing
ESD Contact
+8kV
ESD Air
+15kV
Standards & Compliance
Biometric Format
RAW/WSQ/JPEG, ISO 19794-2/4:2005&2011, ANSI 378
EMI / EMC
CE & FCC Part 15B Class A
Health & Safety
RoHS | IP65 Rating
Safety
EN/IEC 62368-1, IS 13252 (Part 1)
Image Quality
FBI PIV Certified
USB-IF
Certified
Driver
WBF (Windows Biometric Framework)
Dimensions & Weight
Device Dimensions
68 * 56.5 * 31.5 mm
Device Weight
105 grams
Module Dimensions
44.10 * 38 * 28.7 mm
Module Weight
35 grams
System Requirements
Operating System
Windows x86 & x64, Android 7 & Above
1:1 SDK
Morfin Authentication
1:N SDK
Morfin Search
Resources

Everything You Need to Deploy

Product Brochure

Full brochure with technical specs and application overview for MFS200 FAP20 sensor.

Download PDF

Technical Support

Connect with our expert biometric engineers for Morfin SDK integration and support.

Get Support

You Ask. We Answer.

Our biometric specialists will help you integrate MFS200 for financial-grade authentication in your platform.
