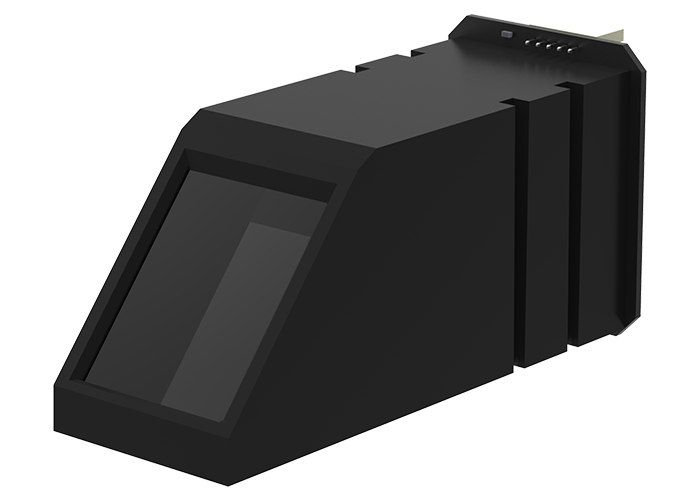

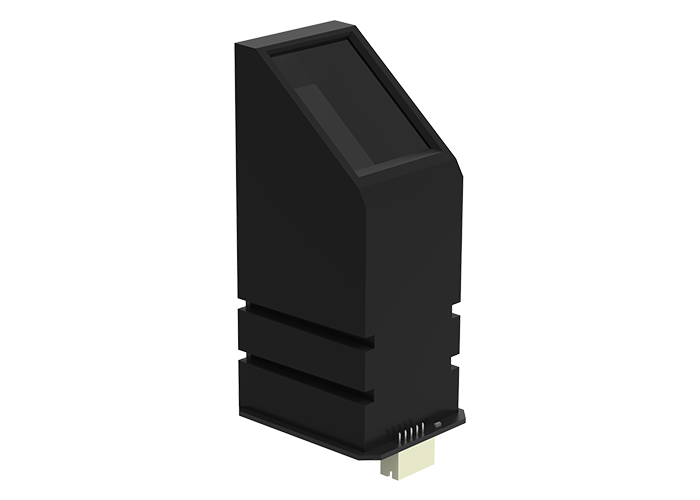

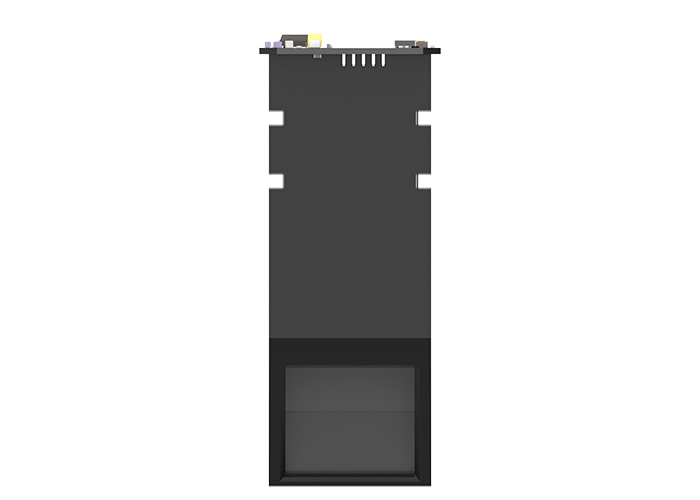

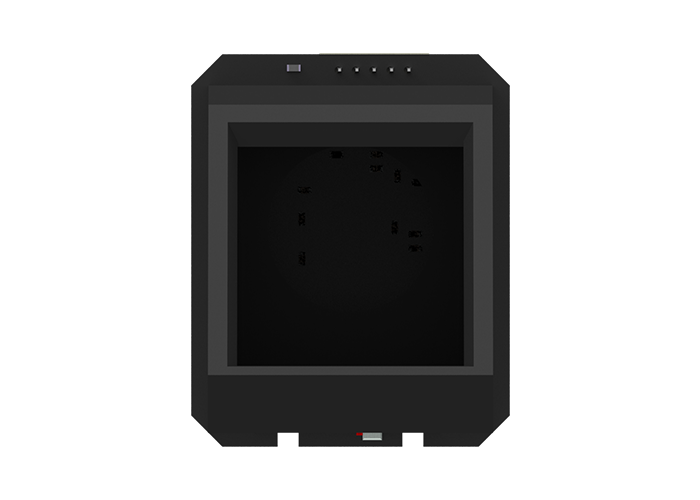

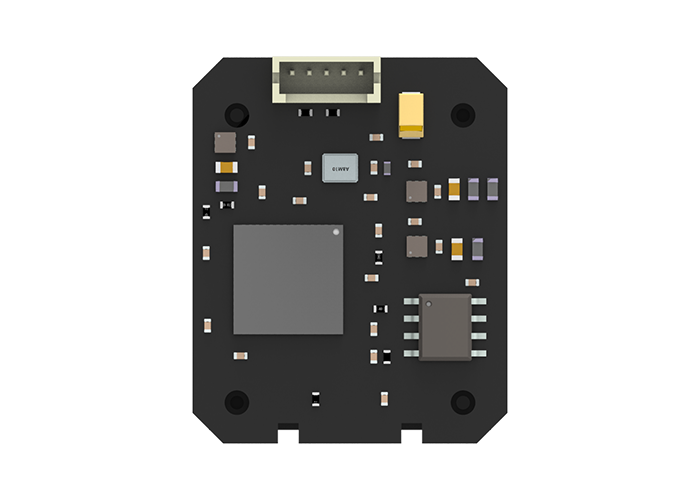

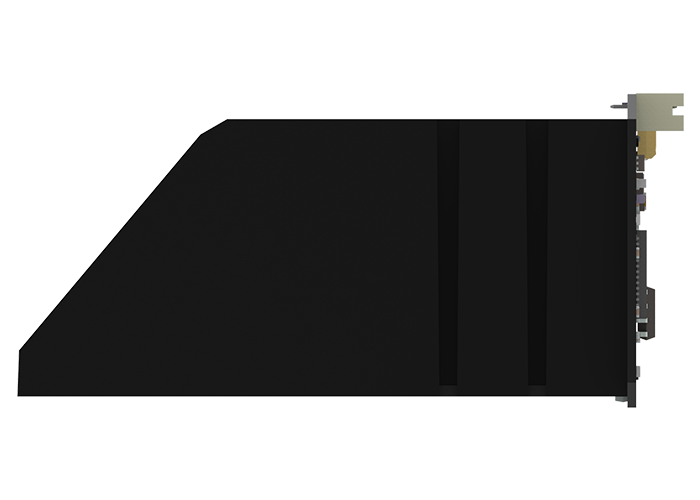

MFS500LX Fingerprint OEM Module

MFS500 LX is a fingerprint OEM module possessing high durability that ensures robustness.

MINEX Compliant Serial TTL Win XP/7 Support WHQL Certified IP54 Rated STQC Ready

Get a Quote Download PDF

500 DPI Resolution

MINEX Compliant

Serial TTL Interface

Key Highlights

Our MFS500LX Module Resilience

MFS500 LX is MINEX compliance embedded extractor. The OEM module offers precise and rapid verification, authentication and authorization processes. MFS500 LX is a safe and convenient module. The module allows accurate authentication of an individual that easily identifies the poor quality fingerprint image of any person.

Embedded Core

MINEX Compliant

Possesses a MINEX compliance embedded extractor for world-class fingerprint matching accuracy.

Performance

Rapid Verification

Offers precise and rapid verification, authentication, and authorization processes for mission-critical apps.

Connectivity

Serial TTL Support

Versatile interface options including USB 2.0 and Serial TTL for deep hardware integration.

Advanced Technology

Robust Embedded Biometrics

MFS500LX deliver consistent performance even with poor quality fingerprint images.

Resolution

500 DPI

Precision 500 DPI +/- 5% image resolution for reliable biometric capture.

Efficiency

81 mA

Low operating current of 81 mA and 45 mA standby current for power-efficient operation.

Protection

IP54

Enviornmental protection against dust and water splashes for rugged use-cases.

Platen Size

16x18.2 mm

Compact platen design with an active capture area of 16x18 mm.

Interface

USB / TTL

Unique dual interface support with USB 2.0 and Serial TTL for versatile connectivity.

Strategic Applications

Discover Our Solutions

MFS500LX Module powers complex identity programs where robustness and serial integration are key.

Government | Citizen ID

Citizen Identification

Standardized enrollment for large-scale citizen identity and Aadhaar programs with reliable fingerprint capture.

Platform | R&D

Biometric Technologies

Cutting-edge multimodal biometric platforms for high-accuracy fingerprint recognition deployments.

Enterprise | Security

Security Solutions

End-to-end enterprise protection with secure biometric access control and verification.

Specifications

Technical Details

Full technical specifications for system integrators and hardware developers.

Sensor Characteristics

Fingerprint Sensor

Optical Scratch Free Sensor

Image Resolution

500 DPI +/- 5 %

Platen Size

16 mm x 18.2 mm

Active Platen Size

16 mm x 18 mm

Image Size

316 x 354 Pixels

Image Grayscale

256 (8 - Bit Gray Level)

Light Source

RED LED

Dimensions

29 x 35 x 61 mm

Approx Weight

0.028 Kg

Electrical Characteristics

Operating Voltage

5V +/- 5% (USB Powered Device)

Operating Current (max)

81 mA

Stand by Current (max)

45 mA

Interface

USB 2.0 & Serial TTL

Environmental Characteristics

Operating Temp

0 to 45 ^oC

Storage Temp

0 to 50 ^oC

Humidity

< 90% RH, Non-condensing

IP Rating

IP54

Certifications & Standards

Biometric Format

ISO 19794-2 (Minutiae), ISO 19794-4 (Image)

EMI / EMC

CE & FCC Class A

Safety

IEC60950, IS 13252 (Part 1)

Certifications

MINEX Compliant, STQC Ready, RoHS

OS Support

Win XP, Win 7, Linux (32/64 bit)

Device Driver

WHQL Certified with Unique Serial Number
