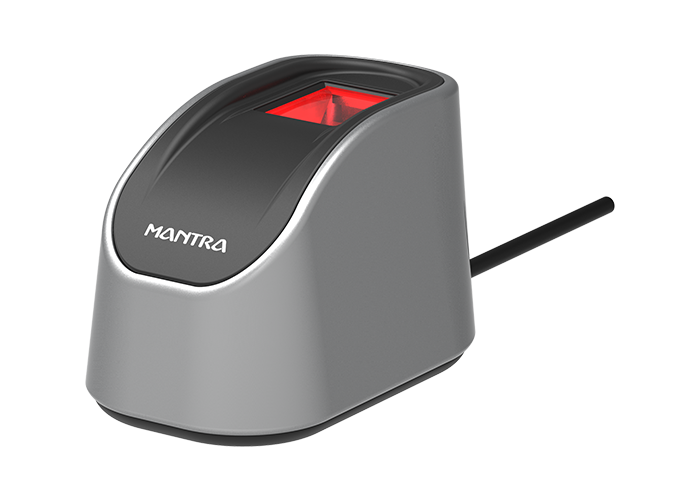

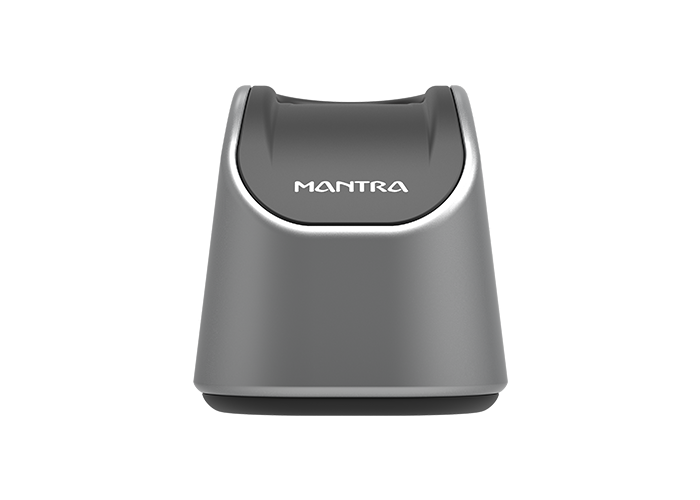

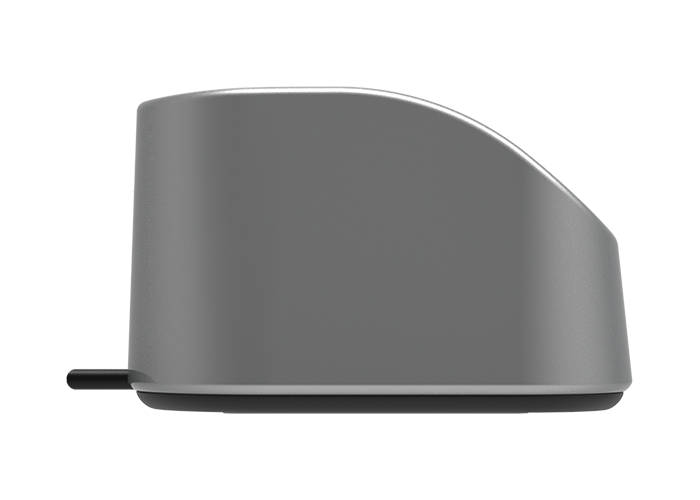

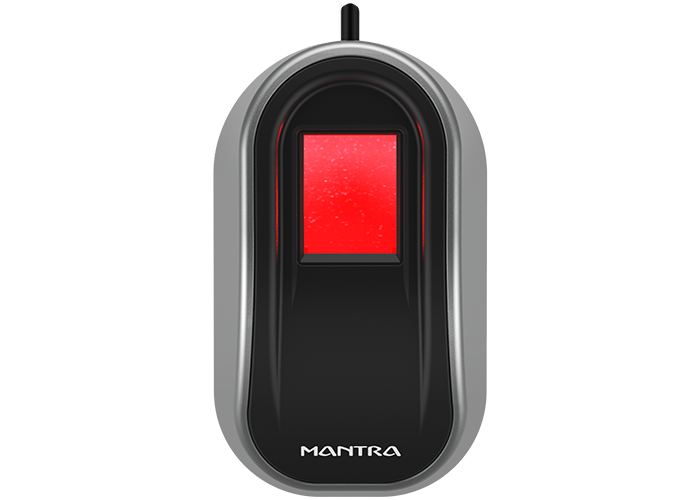

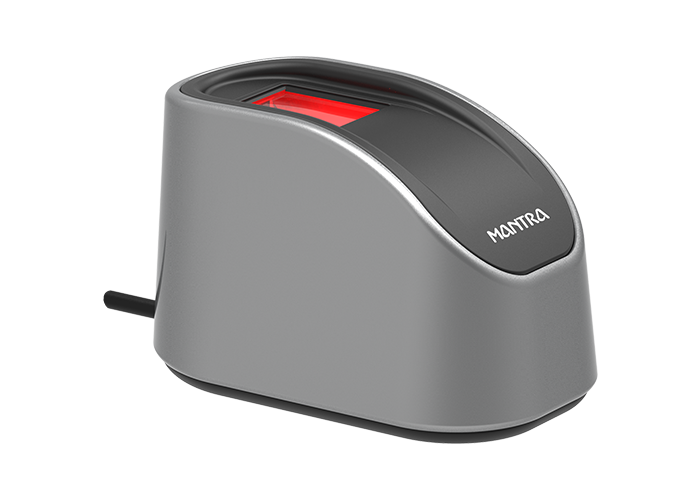

MFS500 Biometric Fingerprint Scanner

Fingerprint Sensor Type :

Optical Scratch-Free Sensor

Spatial Resolution :

500 DPI +/-2%

Platen size :

16.4 mm x 20.0 mm

Sensing Area :

15 mm x 18 mm

Image Size :

296 x 354 Pixels

Image Grayscale :

256 (8 - Bit Gray Level)

Light Source :

RED LED

Approx Dimensions (L x W x H) :

85 x 51 x 54 mm (Module: 61 x 23 x 28.5 mm)

Approx Weight :

0.123 Kg (Module : 0.025 Kg)

Maximum Acquisition Time (Placement to Template) :

< 2 Sec

Capture mode :

Auto Finger detection functionality & Auto capture with built-in quality check (incorporates NIST quality considerations)

Operating Voltage :

5V +/- 5% (USB Powered Device)

Operating Current (max) :

<=85 mA

Stand by Current (max) :

<=40 mA

Interface :

USB 2.0

Operating Temperature :

0 to 50^oC

Storage Temperature :

0 to 50^oC

Humidity (Operating / Storage) :

< 90% RH, Non-condensing

Biometric Data Interchange Format :

ISO 19794-2, ISO 19794-4, ANSI 378, WSQ3.1, JPEG2000

Environmental, Health and Safety :

RoHS

BIS :

IS 13252 (Part 1)

Safety :

EN / IEC 60950

EMI / EMC Compliance :

CE & FCC Part 15 B class A

Image Quality :

FBI PIV Certification, Mobile-ID FAP10

IP Rating :

IP54

Device Driver :

WHQL Certified with Unique Serial Number

OS Supports :

Window x86 & x64, Linux, Android
