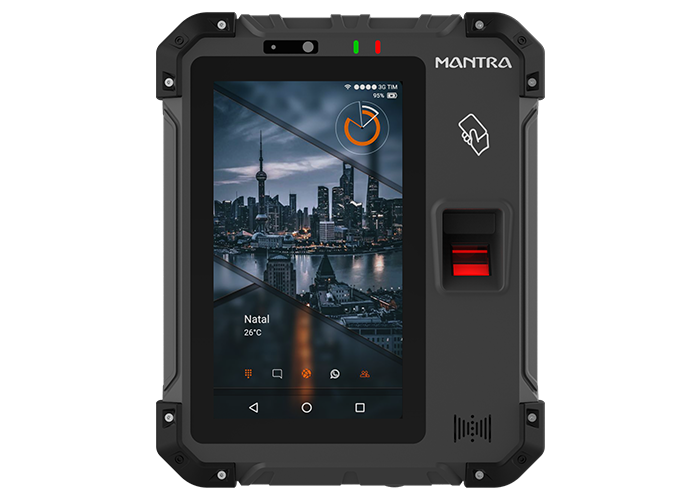

MFSTAB II Embedded Advance AEBAS Terminal

Mantra's MFSTAB II is an embedded advance AEBAS terminal specially designed for Aadhar enabled Biometrics Attendance system (AEBAS) application to catter only Government employees. Its eccentric usecase with high performance and seemless identification makes it ideal for Aadhar attendance.

Get In Touch

Our MFSTAB II Embedded Advance AEBAS Terminal

MFSTAB II is a STQC certified fingerprint tablet exclusively designed for Aadhar enabled Biometrics Attendance System (AEBAS) for government employees. MFSTAB II offers flawless operation for AEBAS and can be utilized as a wall-mounted device.

This solely AEBAS machine does not support any third party software, nor does it come with a SDK. The AEBAS functionality of MFSTAB II rules out the possibility of any customization in the OS as well. The device offers multiple connectivity options such as SIM support, Wi-Fi and Ethernet connectivity for smooth and uninterrupted operations.

Feature Based On Ordering Code

Ordering Code	M0035MT11X110100	M0035MT21L110100
Mifare 1K	No	Yes
External USB 2.0 Slave	No	Yes
Contactless Card	No	Yes

Our Features

text...

5MP AF Front Camera with Flash

4000 mAH Battery Backup

Ethernet / LAN Connectivity

13.56 Mhz Contactless Smart Card Reader (M0035MT21L110100)

STQC & FBI PIV Certified Fingerprint Scanner

Android Operating System

micro SD Card Slot Supporting up to 32Gb Storage

Barcode Reader with Camera

1:1 or 1:N Fingerprint Matching Functions

Our Certifications

text...

Chartered
Engineers ( CE )

Federal
Communications Commission ( FCC )

Restriction of
Hazardous Substances ( RoHS )

Standardisation Testing &
Quality Certification ( STQC )

FBI Personal
Identity Verification ( PIV )

Safety Standard for
Information Technology Equipment ( IEC60950 )

IS 13252 Part 1
( IS13252-1 )

Our Specifications

MFSTAB-II feature exquisite specifications that are designed to address the modern-day requirements of individual identification and authentication.

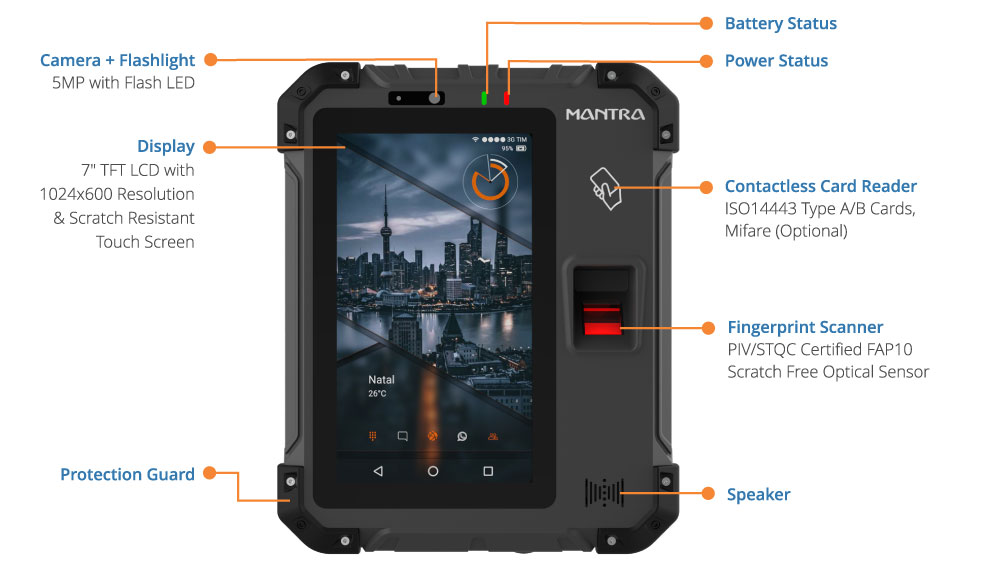

Hardware & System

Processor :

ARM Cortex A7 @1.3GHz Quad Core Processor

Memory :

8GB Flash + 1GB RAM

Display :

7" TFT LCD with 1024x600 Resolution

Operating System :

GMS Certified Android OS

Camera :

5MP Auto Focus Front Camera with Flash LED

LED Indicators :

Power On/Off, Battery Charging Status

Smart Card Reader

Contactless Card :

ISO14443 Type A/B Cards, Mifare

Fingerprint Sensor

Fingerprint Type :

Scratch Free Optical Sensor

Fingerprint Image :

16 x 18 mm

Image Specs :

500DPI, 8 Bit Grayscale

Certifications :

CE, FCC, RoHS, STQC, PIV, IEC60950, IS13252 Part I

FAP :

FAP10

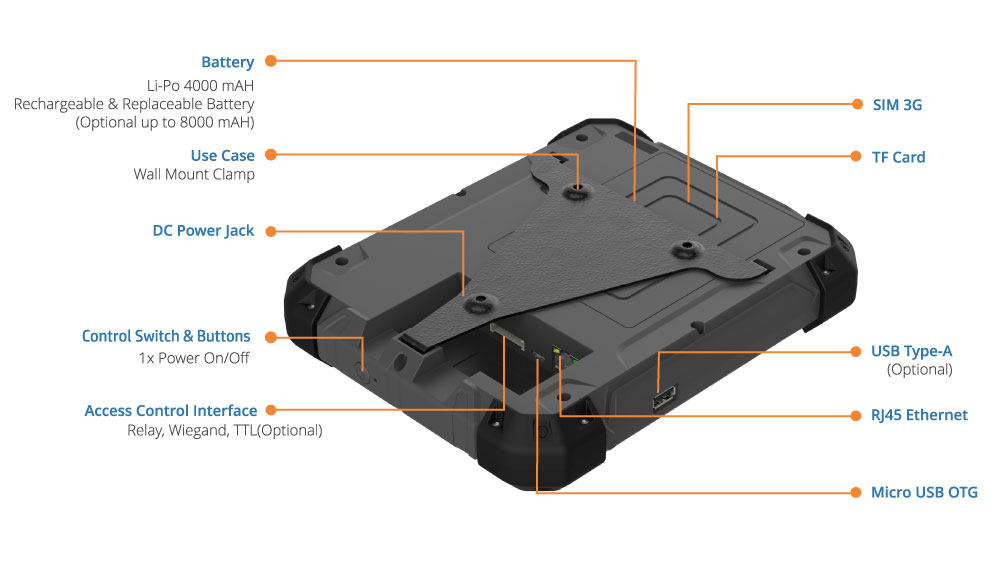

Interfaces

Connectivity :

3G/4G, Wi-Fi, Ethernet

SD Card :

MicroSD Card (Supports up to 32GB)

Bluetooth :

BLE 4.0

GPS :

16 Channel NMEA Compliant, AGPS Supported

SIM Socket :

1 x SIM Socket

USB :

USB

Electrical

Power Adaptor :

Input AC: 100~240V, 50Hz ;
Output DC: 12V/1.5A

Battery Pack :

Li-Po 4000 mAH Rechargeable & Replaceable Battery (up to 10000 mAH)

Our Mount Guide

Text....

Setp 1:
Screw Holes Marking

Ideal mounting height is 4 feet to 5 feet from the ground level to the top of the device.

MANTRA recommends marking circular holes using mounting plate provided in the box. Refer to the image.

Setp 2:
Drill Holes

Drill holes on the marked positions as shown in the image.

Setp 3:
Plate Mounting

Place wall plugs inside the drilled holes with the help of a hammer. Align the holes of the mounting plate with the wall plugs and tighten it with the help of screws provided.

Setp 4:
Cable Connection

Connect the ethernet cable, access control cable(If needed) and power supply cable with their respective connectors in the device.

Setp 5:
Attach the Device

Hold the device in position and hang it on the mounting plate, follow the steps shown in the image.

Setp 6:
Secure the Device

Finally, secure the device from bottom by screwing it together with mounting plate with the help of screw provided, refer to the image.
