Our MOXA73 Portable Biometric Rugged Tablet for Identification

MOXA73 is a portable biometric rugged tablet that is packed with features to meet diverse biometric enrollment and identification project needs. The device is equipped with a reliable ngerprint scanner and camera to capture high-quality images and includes a stunning 7-inch display. MOXA73 also supports various communication methods, including GPRS, 3G, 4G, WIFI, BLE and USB.

Every biometric application requires a reliable device to fulfill its application requirements successfully. MOXA73 is the most reliable biometric tablet in the market . The device features the accuracy, reliability, and durability that you need for any biometric identity management application. MOXA73 includes an amazing 8MP AF Back camera with High brigthness Flash LED for clear face capture and it works very seamlessly to scan Bar codes & QR code.

Typical Use Cases

Identity Registration & Authentication

Citizen Enrollment & Verification

Law Enforcement & Security

Humanitarian Aid & Relief Management

Banking & Retail KYC

Time & Attendance Management

Border & Access Control

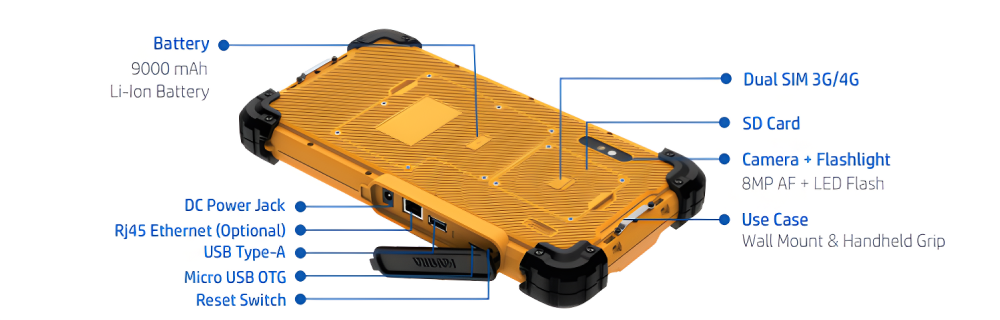

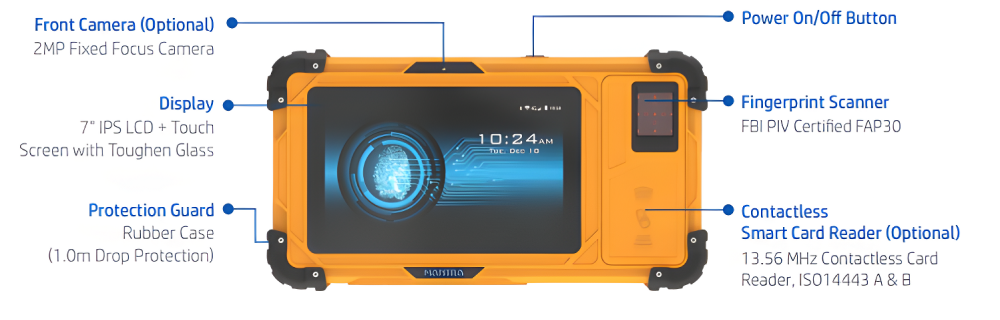

At A Glance

Portable Biometric Rugged Tablet for Identification.

Our Specifications

Hardware & System

CPU :

ARM Cortex A53 @1.3GHz Quad Core Processor

Memory :

2GB RAM + 16GB eMMC

Micro SD Card :

Micro SD slot supporting up to 64 GB memory card

LCD :

7" IPS LCD with resolution (1024 X 600) with 16M colors

Touch :

Scratch Resistant Multi-Point Capacitive Touch Screen with 6H Toughen Glass

Operating System :

GMS Certied Android OS

Back Camera :

8MP AF camera with High brigthness Flash LED

LED Indicators :

Power On/Off, Battery Charging Status

Audio :

High-Quality 1W Speaker for Announcements

Control Buttons :

1x Power On/Off, 1x Reset Key

Operating / Storage Temperature :

0 Deg - 50 Deg C

Operating Humidity :

10%-90% RH (Non-Condensing)

Dimensions (in mm) :

250 x 141 x 49 mm

Weight :

Approx 0.7Kg (Depend Upon Conguration)

Certications

CE, RoHS, BIS, IP65

Fingerprint Sensor

Fingerprint Type

Scratch Free Optical FAP30 Sensor

Image Specs :

500DPI, 8 Bit Grayscale

Certifications :

CE, FCC, RoHS, PIV, IEC60950, IS 13252 Part I

Interfaces

4G/3G/2G :

2G GSM/GPRS/EDGE:850/900/1800/1900

3G WCDMA:B1/B2/B5/B8

4G FDD: B1/B3/B5/B7/B8/B38/B40/B41

4G TDD: All Band

Wi-Fi 2.5GHz & 5.0 GHz :

IEEE 802.11 b/g/n with Flex antenna

Bluetooth :

BT + BLE 4.2

GPS :

16 Channel NMEA Compliant with Flex Antenna, AGPS Supported

SIM Socket :

2 x SIM Socket

DC Jack :

1 x DC Power Input

Micro USB :

1 x Micro USB Port for PC Connection as debug port

USB :

USB2.0 Type A (for pendrive connection)

Electrical

Power Adaptor :

Input AC: 90~265V, 50Hz ; Output DC: 12V/2A

Battery Pack :

Li-Ion 9600mAH Rechargeable & Replaceable Battery
