Customized Service Pad

Our Biometric Tablet / Customized Service Pad is a versatile, multi-functional device designed to meet diverse identification and authentication needs. Equipped with a microphone, touchscreen, and fingerprint scanner, it serves as a comprehensive solution for jail visitor management, eKYC, SIM card registration, immigration, and more.

Get In Touch

Our Customized Service Pad

Cutting-edge visitor verification Customized Service Pad device designed for various business security needs. With a 10.1-inch TFT LCD display and touch screen functionality, it offers a seamless user experience. The 33 LED white backlight ensures crystal-clear visibility, while the capacitive fingerprint sensor with gold coating provides secure verification. It also comes equipped with 10 USB 3.0 ports, a microphone, VGA and HDMI interfaces, and is certified by BIS and ROHS. The Customized Service Pad is designed for easy table mounting and is the perfect solution for your visitor management needs.

Features

Humanized Design

Aesthetically Rich & Ergonomics Taken Care.

Multi-touch Point PCAP Display

Designed to reduce RSI (Repeated Stress Injury)

Built-In Biometric Modality

Superior Screen Cast through HDMI In

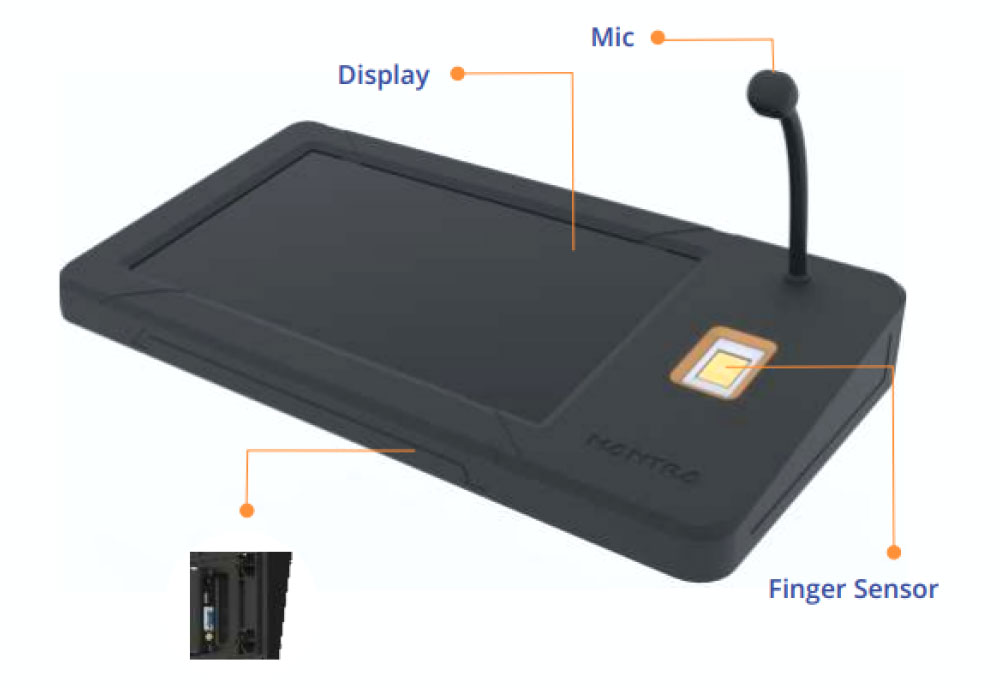

At A Glance

Cutting-edge visitor verification Customized Service Pad device designed for various business security needs.

Our Specifications

Fingerprint Sensor

Fingerprint Type :

Capacitive, Gold Coating

Power :

5V USB

Fingerprint Image :

256 x 360 Pixels

18.0(L) mm *12.8(W) mm

Image Specs :

508DPI, 8 Bit Grayscale

Certifications :

FIPS 201 Compliant, IP65

Operating temperature :

-30℃ to +70℃

Storage temperature :

-30℃ to +125℃

Humidity :

5% - 93% RH Non-condensing

Package Size :

35(L)mm*23(W)mm*4.1(H)mm

Display & Touch

Display Type :

10.1’’ TFT LCD , 1024(R+G+B) *600 Dots a-Si TFT, Positive,Transmissive

Display Mode :

Normally Blue

Viewing Direction :

6 O’clock

Backlight :

33 LED White Color

Interface :

RGB

Luminance :

350 (TYP)

Operating Temperature :

-20℃ ~ 70℃

Storage Temperature :

-30℃ ~ 80℃

Storage Humidity :

Max 90% RH

Microphone

Voltage :

DC 4.5V

Size :

9.7mm*6.7mm

Sensitivity :

-58 +/- 2dB

Obstruction :

2.2Kohm

Frequency :

100Hz-10KHz

Directivity :

Full Direction

SNR :

<= 50dB

Interface

VGA :

Supported

HDMI :

Supported

HDMI Splitter + Cable

Power Supply :

DC 5V 1A

Input Ports :

1 x HDMI Female input port

Output Ports :

4 x HDMI Female output ports

Frequency Bandwidth :

2.97Gbps

Power Consumption :

5W

Display Resolution :

Supports up to 4K@30Hz & 1080P @120Hz

Dimensions :

116(L)mm*64(W)mm*20(H)mm

Operating Temperature :

0℃ ~ 40℃

Storage Temperature :

-20℃ ~ 60℃

Relative Humidity :

20%-90% RH (Non-Condensing)

Material :

Aluminium

Version :

HDMI 1.4A

HDMI Cable :

1 x HDMI Cable 4K@60Hz 1.5 Meter

USB HUB

Power Supply :

12V/3A

USB Port Rating :

5V/ 1.5A

USB PORT :

10 x USB 3.0

USB Cable :

100 cm

Data Transfer Rate :

Upto 5 Gbps

Operating Temperature :

40℃ ~ 50℃

Storage Temperature :

25℃

Dimensions :

187.5(L)mm*40(W)mm*40(H)mm

Weight :

0.50kg

Material :

Aluminium

General Parameters

Power :

DC 12V, 1A

Casing :

ABS Plastic

Operating Temperature :

-20℃ ~ 70℃

Storage Temperature :

-20℃ ~ 80℃

Operating Humidity :

20%-90% RH (Non-Condensing)

Dimensions :

340.2(L)mm*175.2(W)mm*63(H)mm

Weight :

1.2kg

Mounting type :

Table Mounted

Certifications

Certifications :

BIS, ROHS
