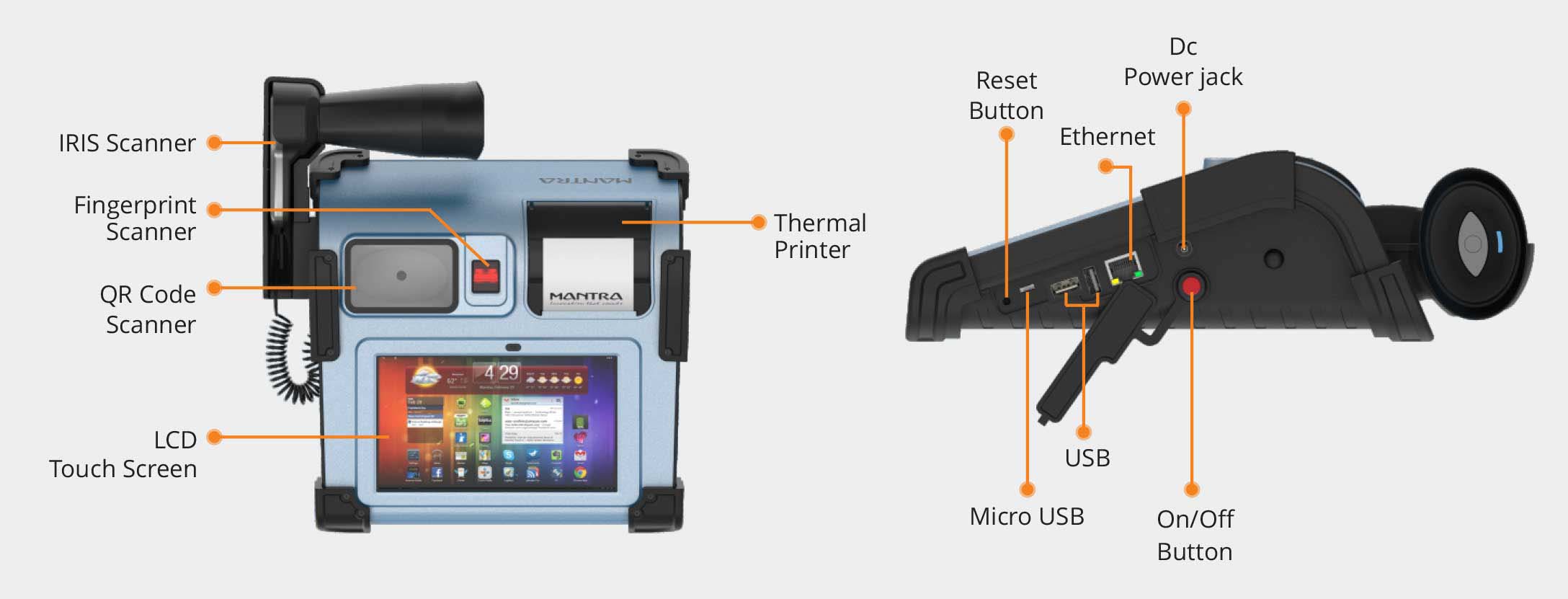

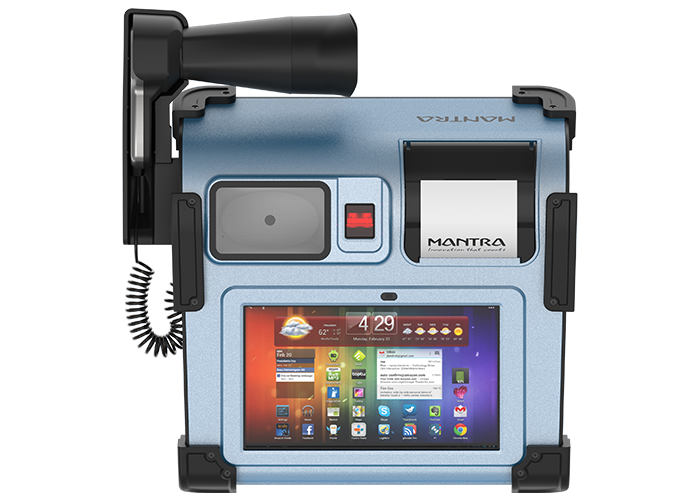

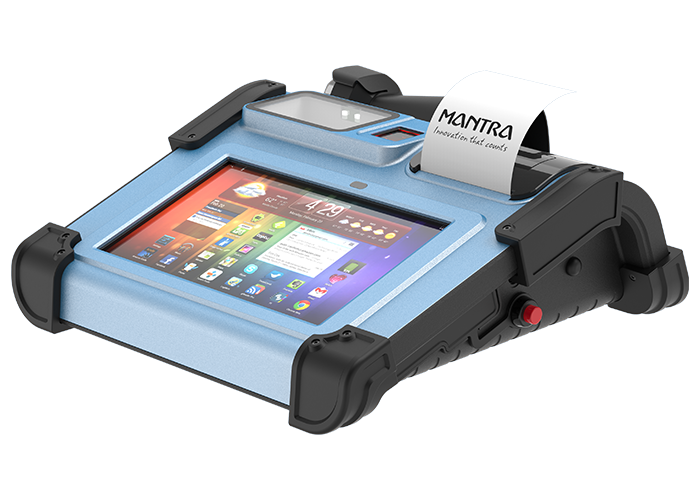

MT100 Biometric Terminal

CPU:

ARM Cortex A53 @2.0 GHz Quad Core Processor

Memory:

2GB RAM + 32GB eMMC

Operating System:

Android 13

QR & Barcode Scanner:

8MP AF camera with High brightness Flash LED

Audio:

High-Quality 1W Speaker for Announcements

Control Buttons:

1x Power On/Off, 1x Reset Key

Dimensions (in mm):

237 x 236 x 87mm

Display:

7" IPS LCD with resolution (1024 X 600) with 16M colors

Touch:

Scratch Resistant Multi-Point Capacitive Touch Screen with 6H Toughen Glass

Spatial Resolution:

> 50% @ 1.0 LP/mm

Pixel Resolution:

> 10 Pixels/mm

Image Margins Left & Right:

>= 0.6x IRIS Radius

Image Margins Top & Bottom:

>= 0.2x IRIS Radius

Imaging Wavelength:

700-900 nm

Pixel Depth:

8 Bits/Pixel

Certification:

CE, FCC, RoHS, BIS, IP54, STQC L0, IEC 62471

Fingerprint Type:

Scratch Free Optical FAP10 Sensor

Fingerprint Image:

276 x 336 Pixels ( Platen Area: 14.0 mm x 17.0 mm)

Image Specs:

500DPI, 8 Bit Grayscale

Certifications:

CE, FCC, RoHS, STQC L1, FBI PIV, EN/IEC 62368-1 , IS13252 Part I

Printer:

Integrated 2" Thermal Printer

Printing Speed:

70mm/s

Effective Printing Width:

48mm

Style:

Black and White

Accelerometer:

3-AXIS Accelerometer

Other Sensor:

Ambient Light Sensor

Power Adapter Input:

90 to 275V AC , 50Hz. with surge protection

Power Adapter Output:

5V, 3A DC

Battery:

Swappable & Rechargeable 8940mAH Li-on battery

Charging Connector:

DC Jack

Input Power:

5V, 3A DC

2G GSM/GPRS/EDGE:

850/900/1800/1900

3G WCDMA:

B1/B2/B5/B8

4G FDD:

B1/B3/B5/B7/B8/B38/B40/B41

4G TDD:

All Band

External Antenna:

Optional

SD Card:

Micro SD slot supporting up to 256 GB memory card

Wi-Fi 2.4GHz & 5.0 Ghz:

IEEE 802.11 a/b/g/n/ac with Flex antenna

Ethernet 10/100 Mbps (Optional):

Ethernet 10/100 Mbps

Bluetooth:

BT & Bluetooth 5.1, 16DB Power TX Capacity

GPS:

16 Channel NMEA Compliant with Flex Antenna, AGPS Supported

SIM Slot:

2 x Micro SIM Slot

SAM Slot:

2 x SAM Slot

Micro USB:

1 x Micro USB Port for PC Connection as debug port

USB:

2 x USB2.0 Type A

Operating Temperature:

0°C to +50°C

Storage Temperature:

- 20°C to +85°C

Humidity (Operating / Storage):

< 90% RH, Non-condensing

Certifications:

CE, FCC, RoHS, BIS, IP54
