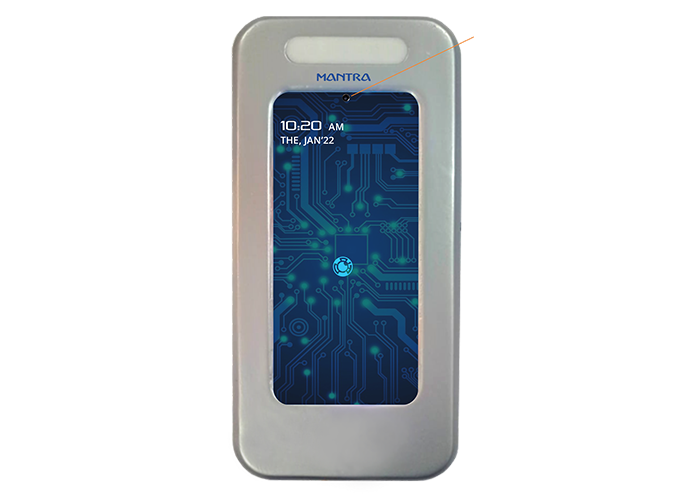

BioNIC M7 AEBAS Aadhaar Enabled IRIS & Facial Recognition System

The M7-AEBAS Aadhaar Attendance Device integrates seamlessly with the Aadhaar biometric system, offering organizations a highly reliable and secure method to track and manage attendance. Designed to combat common attendance fraud and ensure the highest levels of accuracy, the M7-AEBAS is equipped with advanced biometric technology that authenticates employee attendance in real-time.

Get In Touch

Our M7 AEBAS

This device is particularly suited for public sector units, educational institutions, and any entity looking to adopt an efficient, Aadhaar-based attendance system. A perfect blend of elegance, versatility, and precision, BioNIC M7 comes with the benefits of IRIS & Facial recognition for robust and seamless access control. The device is loaded with smart capacitive sensors to ensure the liveliness of the IRIS & Face, making it spoof-proof. High-end technology and top-notch workmanship ensure data security and meet highquality interior standards for the corporate installation.

Applications

Access Control

Time-Attendance

Canteen Management

Visitor Management

Advanced Humancomputer Interaction

School Attendance Device (Track School Attendance)

Parking Management

Facial Recognition Pass Management Module

Key Highlight Feature: Aadhaar Biometric Authentication

The standout feature of the M7-AEBAS is its ability to leverage Aadhaar's vast biometric database for authentication. This feature ensures that attendance is recorded with the utmost accuracy, as each scan is verified against the unique biometric data linked to an individual's Aadhaar number. This not only enhances security but also significantly reduces the potential for proxy attendance, making the M7-AEBAS a cornerstone of trustworthy attendance management.

Real-Time Data Sync:

Attendance data is synchronized in real time, providing immediate updates and access to attendance records, facilitating timely and informed decision-making.

Enhanced Security Protocols:

With biometric data authentication, the system offers an additional layer of security, safeguarding against unauthorized access and ensuring data integrity.

Ease of Use:

The M7-AEBAS features a user-friendly interface, making daily operations simple for both administrators and users.

IRIS & Facial Recognition

Aadhaar/Non-Aadhaar enabled attendance & access control system:-

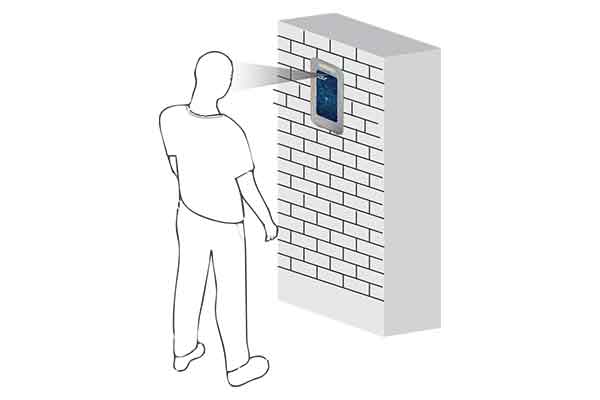

IRIS Recognition

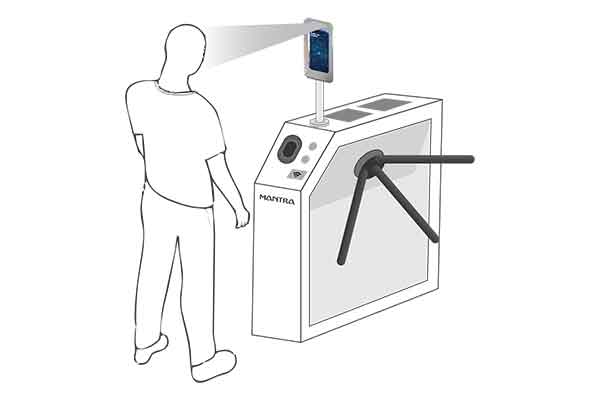

Facial Recognition

Features

Some of the significant features of our advance biometric fingerprint scanner device are listed underneath:-

More Screen, Less Bezel
The slim and sleek design will amaze you, for sure. It is equipped with a 6.95" IPS FHD display, featuring up to 85% screen-to-body ratio and 18:9 new dimensions.

Facial Authentication
To be on par with mobile devices on-the-go, the 5 MP rear camera is optimized with great camera experiences, allowing you to capture your life easily. Relive your life and memory with great device.

Iris Authentication
You cannot expect more. It provides you with fast and reliable Iris recognition, allowing you to unlock device in a flash.

All-Day Battery Life
The 5180 mAh battery capacity will keep you away from power constraint worries for a normal day usage.

Specification

Feature exquisite specifications that are designed to address the modern-day requirements of individual identification and authentication.

Hardware & System

Device Name :

BioNIC M7

Device Type :

Standalone Multimode IRIS / Facial Recognition Device

Authenication Type :

Aadhaar Based IRIS & Facial / Non-Aadhaar Based IRIS & Facial

Terminal Specification :

Wallmount IRIS & Facial Terminal

Display :

17.52cms (6.9) IPS FHD (1080 x 2160), 350 nits, capacitive multitouch

Camera :

Front : 5 MP Fixed-Focus Camera

Operating System :

Android

Processor :

Qualcomm® Octa-Core 450

Audio :

1 x Microphone

Speakers :

Dolby Audio™ 2 x Front Speakers

Sensor :

G-Sensor, P-Sensor, L-Sensor, E-Compass, Gyroscope, Vibrator

Sim :

Type : Nano SIM,
Slots : 3 (microSD™ + 2 SIMs)

Weight :

195 g (0.43 lbs)

Memory

RAM :

4 GB

ROM :

64 GB*

Card Slot :

microSD™

Card :

Up to 128 GB”

Electrical

Battery Pack Type :

Li-ion Polymer

Battery Pack Capacity :

5180 mAh

Power Adaptor :

5V/2A

Communication

WLAN :

WiFi 802.11 a/b/g/n/ac, 5G

Bluetooth® :

Bluetooth® 4.2

WiFi Direct & Display :

Yes

GPS & A-GPS :

Yes

GLONASS & FM Radio :

Yes

Bands Supported :

GSM : B 2/3/5/8
UMTS : B 1/2/5/8
FDD-LTE : B 1/2/3/4/5/7/8/20
TDD-LTE : B 38/40

MobilRIS

Spatial resolution :

60% at LP/mm

Pixel Resolution :

13 pixels/mm

Image Margins :

Left & right = 0.7 X iris radius
Top & bottom = 0.3 X iris radius

Imaging wavelength :

700-900 nm

Pixel Depth :

8 bits/pixel

Scan Type :

Progressive

Output Image :

IMAGE_TYPE_CROPPED_AND_MASKED with JPEG2000 compression; complied with the ISO standard for Iris Image Record (IIR)

Capture Mode :

Auto capture with built-in quality check

Capture time :

3 Sec

Capture Distance (in mm) :

150-210 mm

Safety (optical) :

Exempt Group per IEC 63471:2006-07

Operational performance :

FRR < 1% at FAR of 1 in 1,00,000 with images conforming to IMAGE_TYPE_CROPPED_AND_MASKED of size 3.5KB

Occupational health Safety :

RoHS

Radiated Emission :

FCC part 15B/IEC:CISPR 22 CLASS B

Connectivity :

MIPI

Capture Method :

Dual IRIS

Our Downloads

Comprehensive user guides and informative brochures available, providing a detailed overview and usage instructions.

Product Brochure

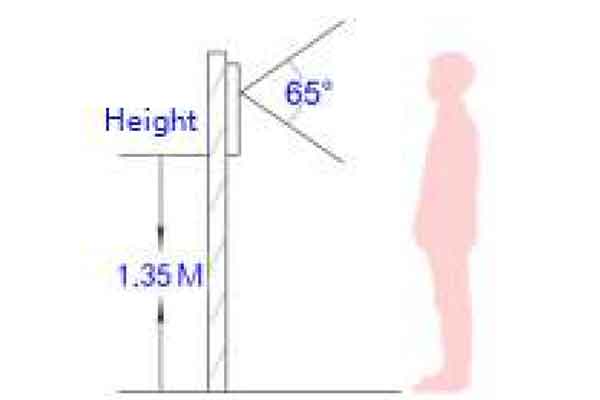

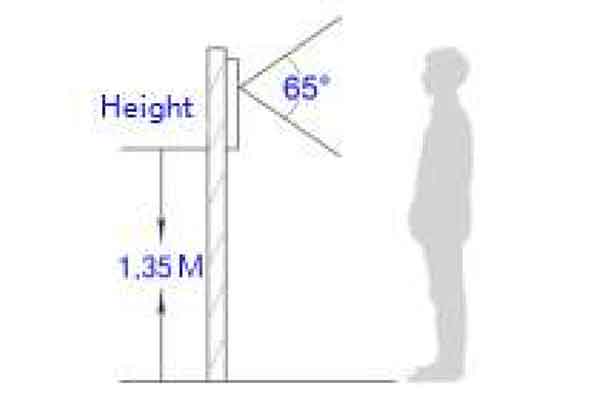

Vertical Wide Angle

Vertical Wide Angle
Vertical Wide Angle

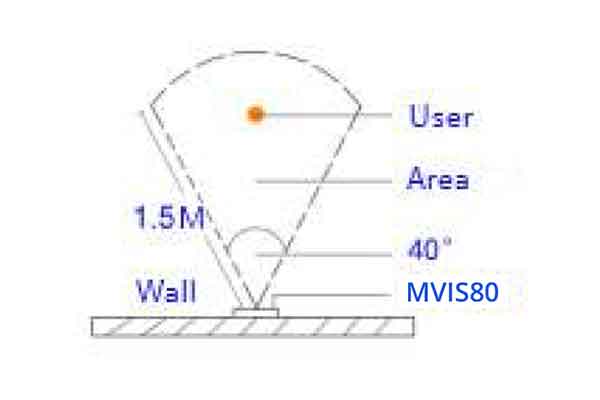

Horizontal Wide Angle

Horizontal Wide Angle
