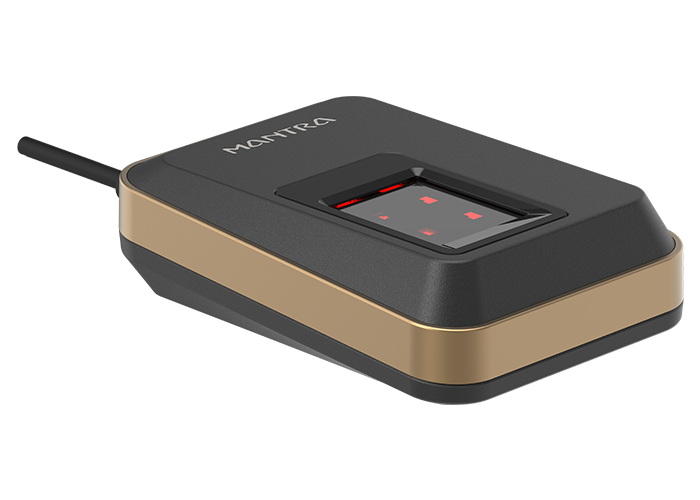

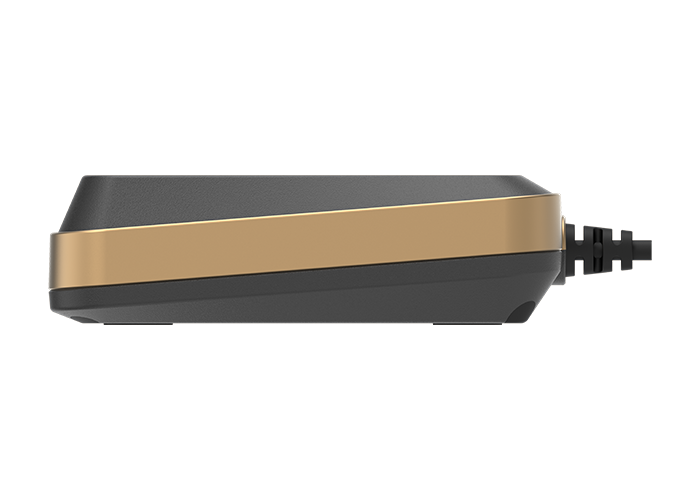

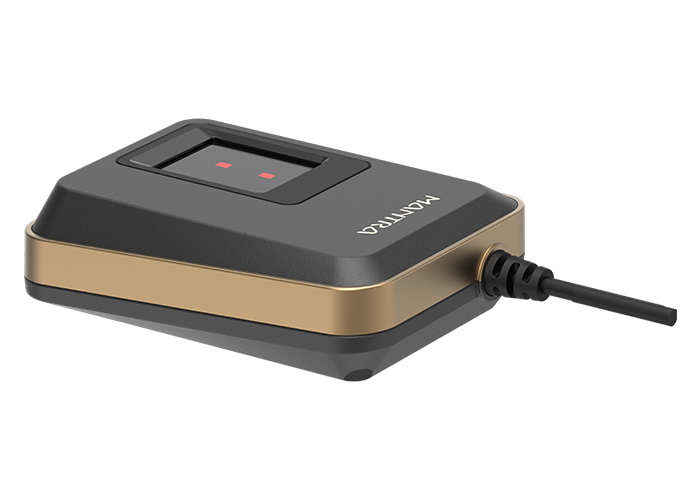

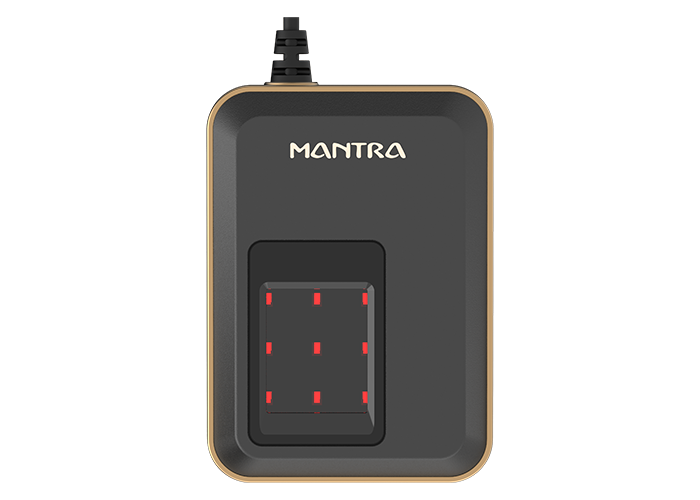

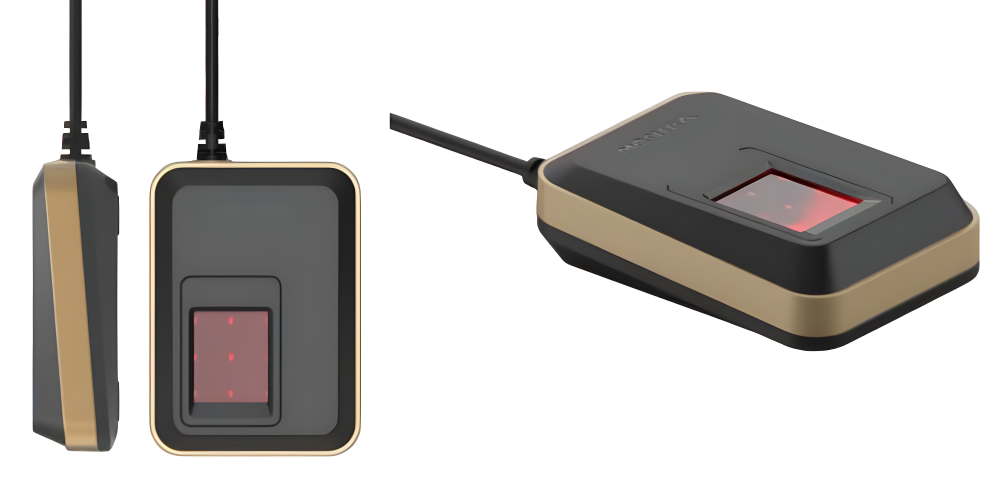

MELO31 FAP30 Optical Fingerprint Scanner

Rugged FAP30 optical fingerprint scanner with a large 20.32*25.40mm enrollment-grade platen, FBI IAFIS Appendix-F / FAP60 certified image quality, IP65 water and dust protection, latent finger detection, and MINEX compliance.

National Enrollment Wet Environments Law Enforcement E-Governance

Get a Quote Download PDF

FAP30 Optical

500 DPI 400*500px

IP65 Rugged

Key Highlights

Large-Platen Precision for Enrollment at Scale

MELO31's FAP30 optical sensor with a large 20.32*25.40mm platen captures 400*500 pixel fingerprint images at 500 DPI - built for the most demanding biometric enrollment programs.

FAP30 Optical | 500 DPI

High Resolution Capture

Large FAP30 scratch-free optical platen (20.32*25.40mm) captures 400*500 pixel grayscale images at 500 DPI 2% - ensuring reliable capture of aged, or manual-labor fingerprints.

FBI IAFIS Appendix-F

FAP60 Certified Quality

Certified image quality meet highest law enforcement enrollment standards. WHQL-certified driver, CE/FCC Part 15B Class A, RoHS, BIS IS13252, and EN/IEC 60950 compliance.

IP65 Protection

Dust & Water Protected

IP65 protection makes MELO31 dust-tight and able to withstand water jets - ideal for enrollment centers, outdoor government programs, and field deployments.

Latent Detection

Live Finger Detection

Advanced latent finger detection distinguishes live from residual prints to prevent false captures. MINEX-compliant embedded extractor with FRR below 0.1% and FAR below 0.001%.

USB 2.0 Interface

Single-Cable Connectivity

USB 2.0 IF-compliant interface with single-cable power and data. Three LED indicators provide real-time status for power, scan state, and image quality.

OS Compatibility

Windows, Android & Linux

Supports Windows x86/x64, Android, and Linux. Outputs data in ISO 19794-2:2011 and ISO 19794-4:2011, WSQ3.1, and JPEG2000 formats.

Advanced Technology

Built for National-Scale Biometric Enrollment

Robust engineering meets large-scale deployment needs for reliable biometric authentication.

Sensor Class

FAP30

500 DPI | 400*500px | 20.32*25.40mm large enrollment-grade platen.

Resolution

500 DPI

8-bit grayscale | RED LED | near-double the FAP10 area.

Protection

IP65

Dust-tight | water-jet resistant | ESD 8kV / 4kV protection.

Platen Size

25.4mm

20.32*25.40mm platen for reliable capture of aged, worn fingerprints.

Capture Speed

<2 sec

Latent finger detection | MINEX extractor | auto quality check.

Strategic Applications

Discover Our Solutions

MELO31 powers identity programs across government, law enforcement, and banking sectors requiring high-quality biometric enrollment.

Government | Citizen ID

Technical Details

Full technical specifications for system integrators and procurement teams.

Sensor Characteristics

Sensor Type

Scratch-Free Optical FAP30

Pixel Resolution

500 DPI 2%

Platen Area

20.32 mm * 25.40 mm

Image Size

400 * 500 Pixels

Image Grayscale

256 (8-Bit Gray Level)

FRR & FAR

< 0.1% & < 0.001%

Max Acquisition Time

< 2 sec

Latent Detection

Supported

Capture Mode

Auto Capture with NIST Quality Check | 360^o Rotation

Hardware & Electrical

Interface

USB 2.0, USB-IF Compliant

Operating Voltage

5V 5% (USB Powered)

Operating Current

< 375 mA (Max)

Operating Temp.

0^oC - 50^oC

Dimensions

173 * 147 * 121 mm

Weight

1.6 Kg (3.6 lbs)

ESD Contact/Air

4kV / 8kV

LED Indicators

Power | Status | Quality

Standards & Compliance

Biometric Data Format

ISO 19794-2:2011, ISO 19794-4:2011, WSQ3.1, JPEG2000

EMI / EMC

CE & FCC Part 15B Class A

Image Quality

FBI IAFIS Appendix-F, FAP60

Environmental

RoHS | IP65 Rating

Safety

EN/IEC 60950

BIS

IS 13252 (Part 1)

System Requirements

Operating System

Windows x86 & x64, Android, Linux

Standard Software

SDK: MIDFinger_Enroll

Quality Check

NIST NFIQ Compliant

Compression

NIST Compliant WSQ Module

Segmentation

Flat-to-Single Fingerprint Segmentation
